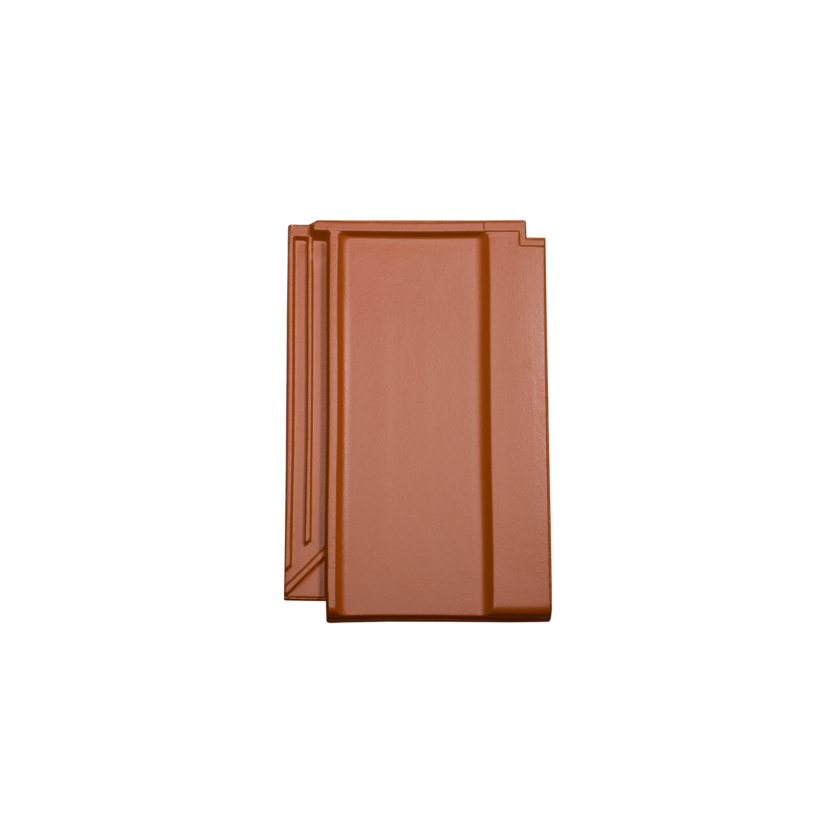

WALTHER-tegula

Smooth tile

Surface & Color

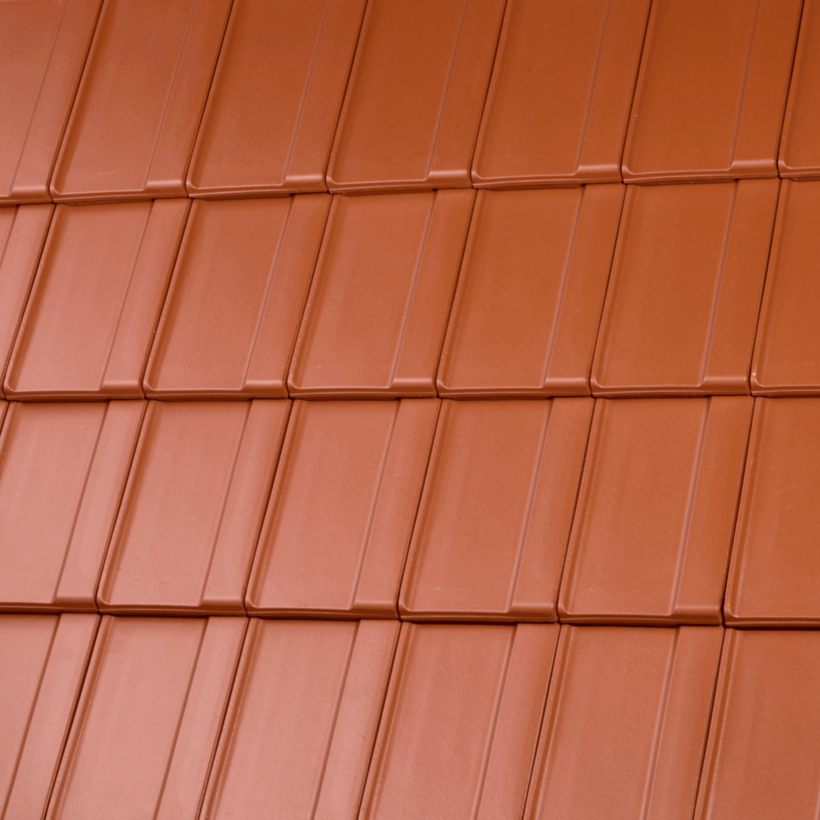

Selected surface/color: red brown

Natural red/engobed

Fine engobes

Are you looking for expert advice?
Contact person/ dealer directory

Can't find the variant you want?
Request individual tile

Overall dimension

27,0 x 42,0 cm

Cover length (CL)

25,0 - 35,0 cm

Cover width (CW)

23,1 cm

Required no. of units per m²

12,4 - 17,3

Weight per unit

ca. 3,7 kg

Recommended roof pitch

≥ 30°

The tegula is our roof tile with maximum height adjustability. It can slide by up to 80 millimetres. Its double side and base fold will protect any property reliably for decades. The straight lines and varied play between light and dark make the WALTHER tegula a tile that perfectly matches modern architecture. With traditional, light and also popular dark tones, you can decorate any contemporary roof.

Dimensions

Dimensions
Dimensions default
Overall dimensions 27,0 x 42,0 cm
Cover length (CL) with verge 32,5 - 35,0 cm
CL working on verge 27,0 - 32,5 cm
CL without verge 25,0 - 35,0 cm
Cover width (CW) 23,1 cm
Required no. of units per m² 12,4 - 17,3
Weight per unit ca. 3,7 kg
Double beading pcs. per rm ca. 2,9
Verge pcs. per rm ca. 2,9
Smallest packaging unit 64 St.
Pcs/pallet 256
Recommended roof pitch ≥ 30°

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
WALTHER-tegula - 55 50 50 45 45 40 40 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
WALTHER-tegula - 115 105 100 95 85 75 65 -
Example ridge
Example ridge
Verge WALTHER-tegula
Verge

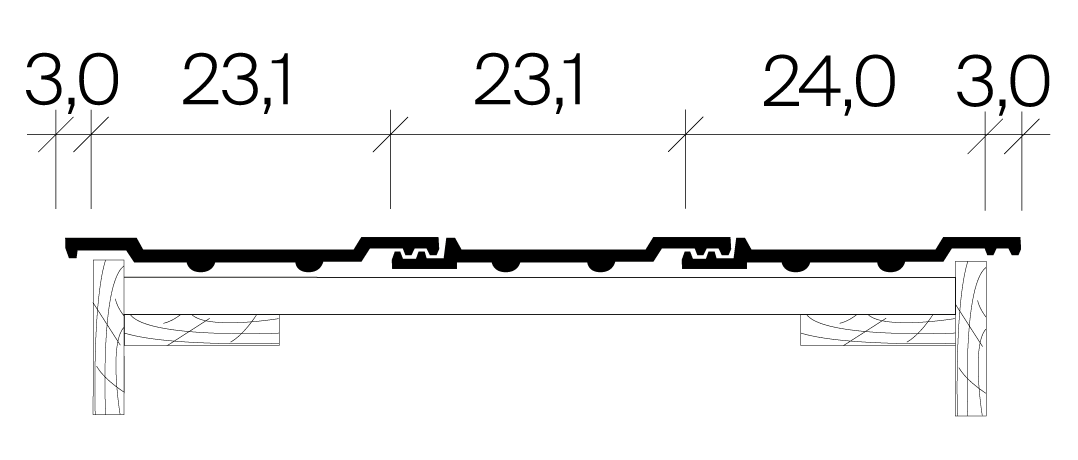

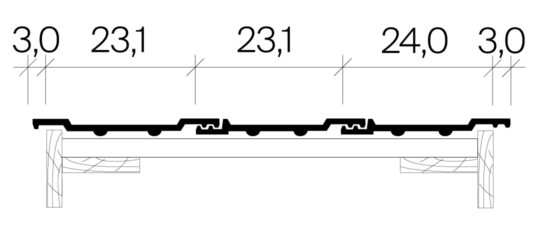

Double beading WALTHER-tegula
Double beading

Dachziegel-Technik App

Mit unserer App Dachziegel Technik bleiben Sie immer auf dem neuesten Stand und erhalten alle wichtigen Informationen und technische Daten rund um unsere Produkte - auch offline!

Mehr über die App erfahren

Header für das kostenlose Werkzeug App Dachziegel Technik

Rechner für Schneeschutzsysteme

Unser Rechner für Schneeschutzsysteme wurde entwickelt, um Ihnen einen Überblick über die zu erwartenden Schneelasten zu geben und dient als Orientierungshilfe für die Schneesicherung Ihres Daches.

Zum Rechner für Schneeschutzsysteme

teaser-page--large

The tegula is our roof tile with maximum height adjustability. It can slide by up to 80 millimetres. Its double side and base fold will protect any property reliably for decades. The straight lines and varied play between light and dark make the WALTHER tegula a tile that perfectly matches modern architecture. With traditional, light and also popular dark tones, you can decorate any contemporary roof.

Dimensions

Dimensions
Dimensions default
Overall dimensions 27,0 x 42,0 cm
Cover length (CL) with verge 32,5 - 35,0 cm
CL working on verge 27,0 - 32,5 cm
CL without verge 25,0 - 35,0 cm
Cover width (CW) 23,1 cm
Required no. of units per m² 12,4 - 17,3
Weight per unit ca. 3,7 kg
Double beading pcs. per rm ca. 2,9
Verge pcs. per rm ca. 2,9
Smallest packaging unit 64 St.
Pcs/pallet 256
Recommended roof pitch ≥ 30°

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
WALTHER-tegula - 55 50 50 45 45 40 40 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
WALTHER-tegula - 115 105 100 95 85 75 65 -
Example ridge
Example ridge
Verge WALTHER-tegula
Verge
Double beading WALTHER-tegula
Double beading
