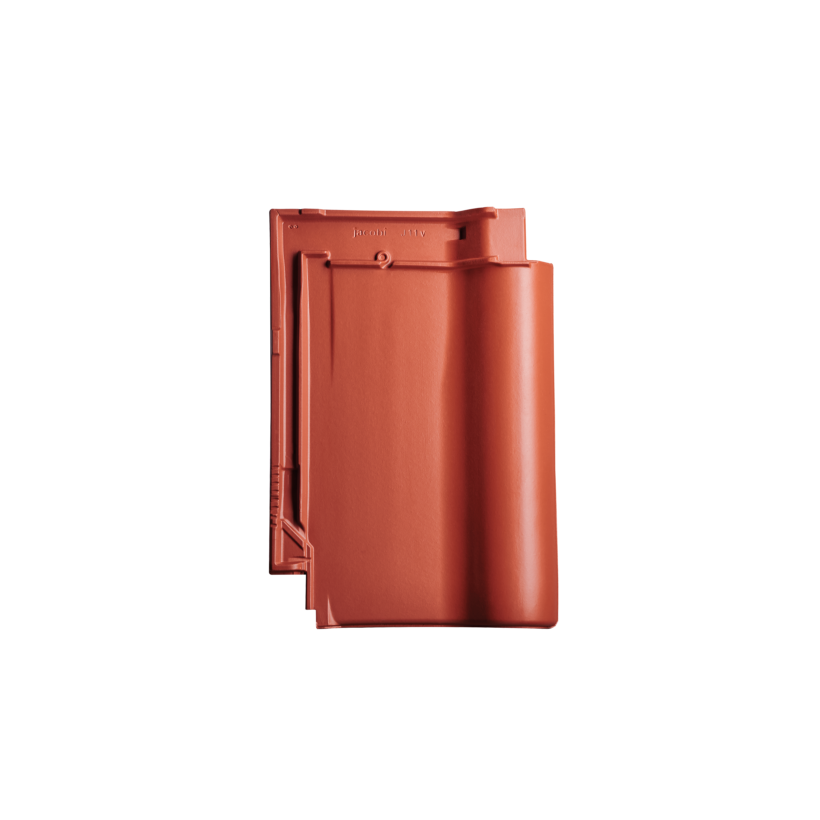

J11v

Flat roof tile

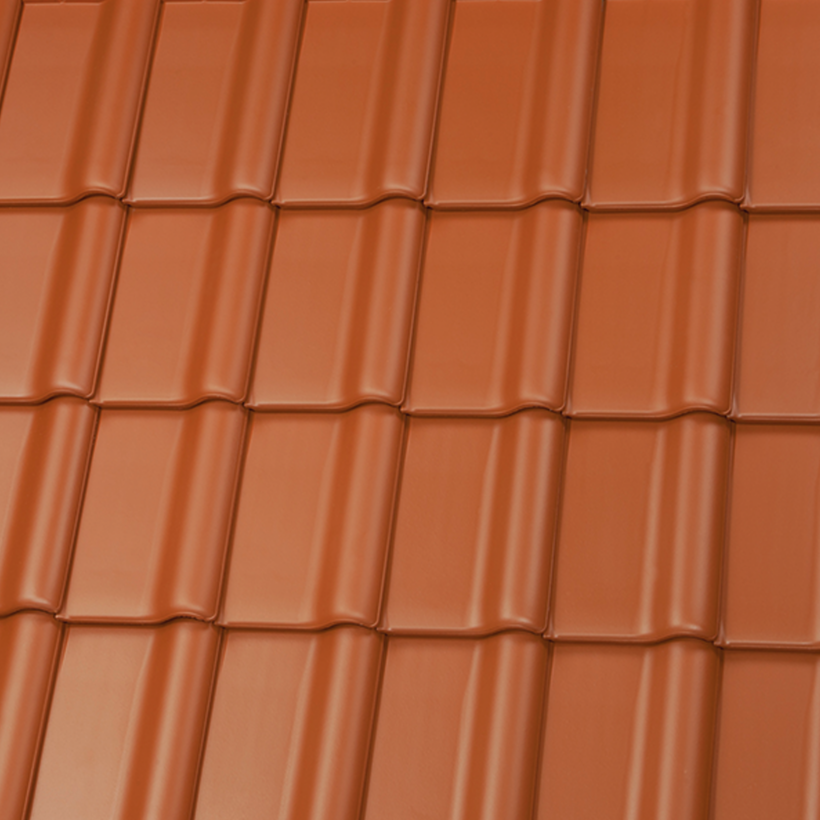

Surface & Color

Selected surface/color: old red

Natural red/engobed

Fine engobes

Are you looking for expert advice?
Contact person/ dealer directory

Can't find the variant you want?
Request individual tile

Overall dimension

30,4 x 44,5 cm

Cover length (CL)

33,3 - 36,5 cm

Cover width (CW)

24,6 cm

Required no. of units per m²

11,1 - 12,2

Weight per unit

ca. 4,4 kg

Recommended roof pitch

≥ 22°

The most frequently sold Jacobi-Walther roof tile is now even better. With the aid of the 32 mm adjustment range in the cover length and the newly developed, high sliding ability in the cover width of up to 8 mm, it provides strong values for new and renovated buildings. Our smooth, fine surface quality from Bilshausen, combined with the impressive choice of sample colours delights developers.
Select your flat roof tile in your desired colour from a total of 17 different, bright colours from standard natural red to high-quality avant-garde glazing. Optimal side folds paired with the high security of the four-tile corner produced with the new J11v will delight you.

Dimensions

Dimensions
Dimensions Natural red - Fine engobes (J11v VAR) Collection Avantgarde (J11v VA)
Overall dimension 30,4 x 44,5 cm29,1 x 44,0 cm
Cover length (CL) 33,3 - 36,5 cm32,8 - 36,0 cm
Cover width (CW) 24,6 cm23,6 cm
Required no. of units per m² 11,1 - 12,211,7 - 12,8
Weight per unit ca. 4,4 kgca. 4,2 kg
FAL pcs pro running meter ca. 4,1ca. 4,2
Double beading pcs pro running meter ca. 2,7ca. 2,8
verge pcs. pro running meter ca. 2,7ca. 2,8
Packaging Unit 60 St.64 St.
Piece/pallet 240256
Recommended roof pitch ≥ 22°≥ 22°

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 75 70 70 65 65 60 45 - -
F1v 45 45 40 30 25 20 15 - -
F6v 90 85 85 80 75 70 65 60 -
F9 80 75 75 75 70 65 55 55 -
F16 90 85 85 85 75 70 70 65 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 115 105 100 95 85 80 75 - -
F1v 140 140 135 130 115 110 110 - -
F6v 130 115 120 115 110 105 90 80 -
F9 100 95 90 85 80 75 60 55 -
F16 120 115 105 100 95 85 75 65 -

Latt distance ridge LAF /* FAL in mm

Latt distance ridge LAF /* FAL in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F6v + FAL 65 55 50 45 40 30 20 - -
F9 + FAL 50 45 35 - - - - - -
F16 + FAL 65 60 55 50 40 35 30 30 25

Ridge-batten distance FLA /* FAL in mm

Ridge-batten distance FLA /* FAL in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F6v + FAL 140 130 125 110 105 105 105 - -
F9 + FAL 105 100 100 - - - - - -
F16 + FAL 125 115 110 100 90 80 80 80 70

Lath spacing ridge (LAF) in mm

Lath spacing ridge (LAF) in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
J11v 40 30 25 25 20 15 10 - -
J11v mit FAL 30 25 20 - - - - - -

Ridge-batten distance FLA for ridge universal 90°

Ridge-batten distance FLA for ridge universal 90°
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
J11v 115 105 100 95 90 85 85 - -
J11v mit FAL 120 110 95 - - - - - -

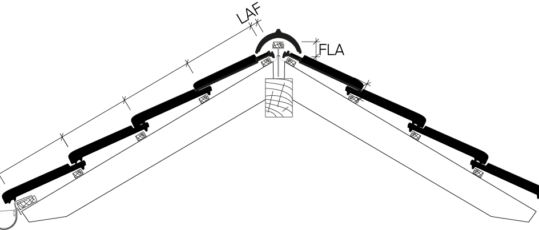

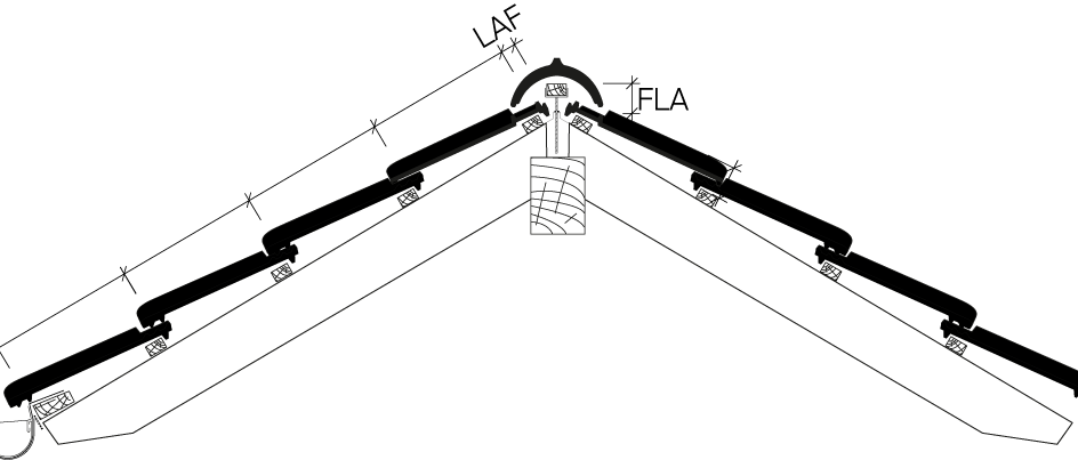

Example ridge
Example ridge

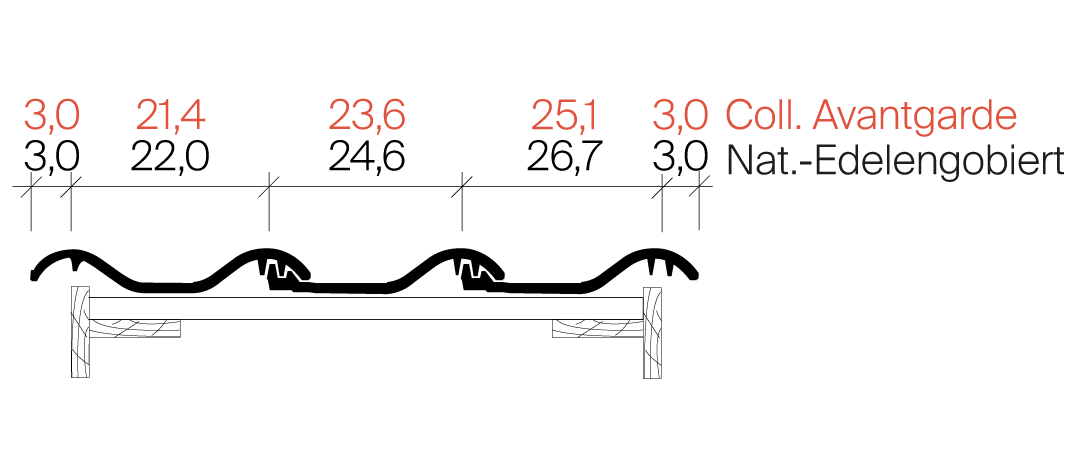

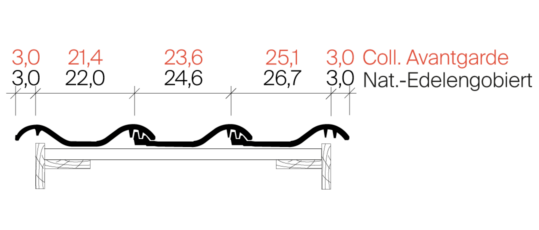

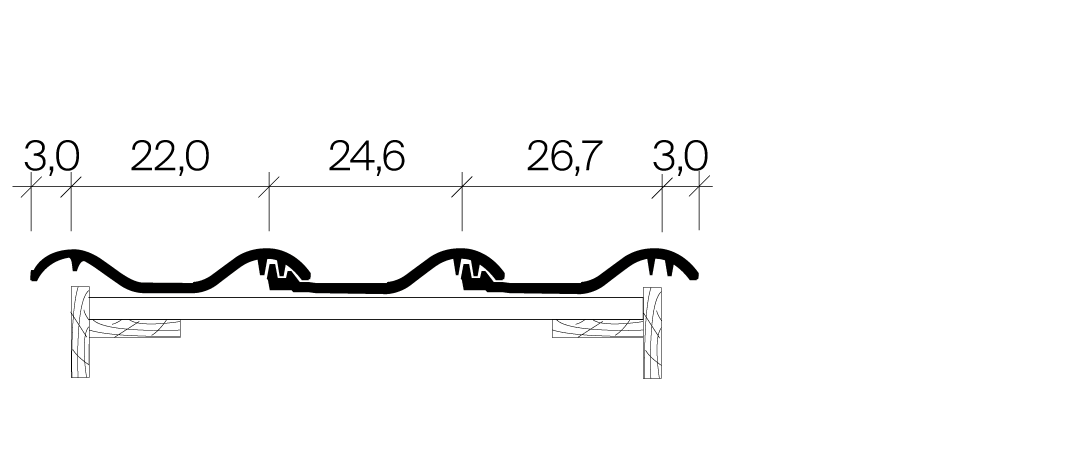

Double beading J11v
Double beading

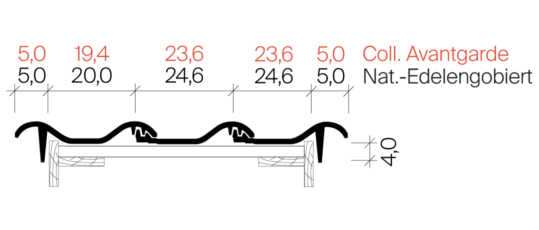

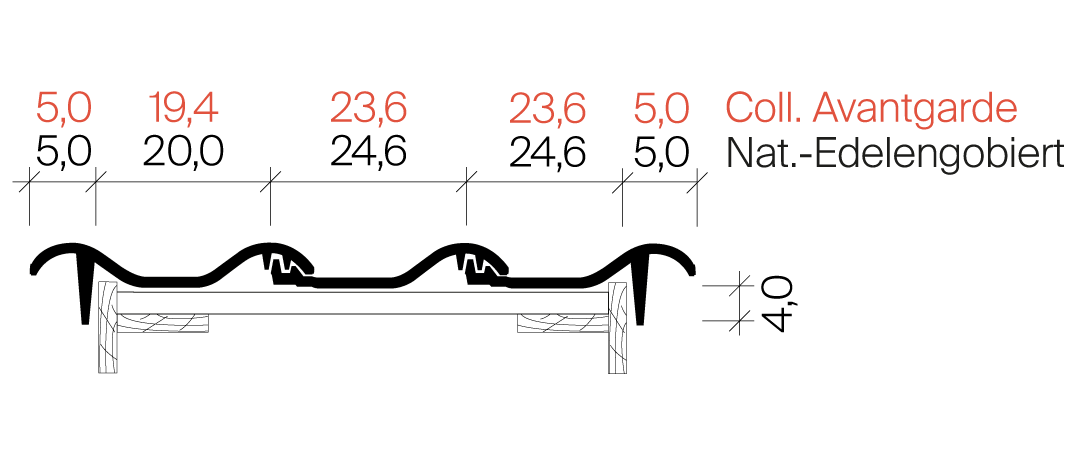

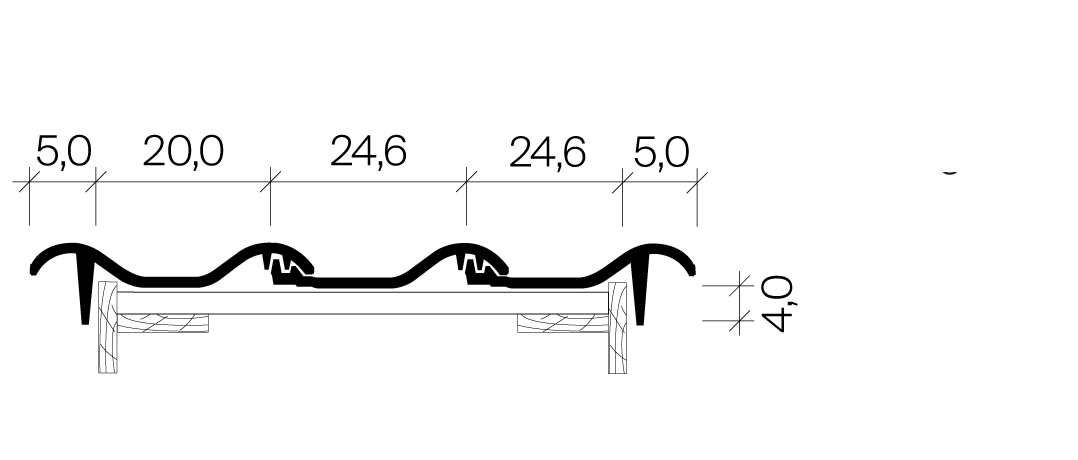

Verge J11v
Verge

Dachziegel-Technik App

Mit unserer App Dachziegel Technik bleiben Sie immer auf dem neuesten Stand und erhalten alle wichtigen Informationen und technische Daten rund um unsere Produkte - auch offline!

Mehr über die App erfahren

Header für das kostenlose Werkzeug App Dachziegel Technik

Rechner für Schneeschutzsysteme

Unser Rechner für Schneeschutzsysteme wurde entwickelt, um Ihnen einen Überblick über die zu erwartenden Schneelasten zu geben und dient als Orientierungshilfe für die Schneesicherung Ihres Daches.

Zum Rechner für Schneeschutzsysteme

teaser-page--large

The most frequently sold Jacobi-Walther roof tile is now even better. With the aid of the 32 mm adjustment range in the cover length and the newly developed, high sliding ability in the cover width of up to 8 mm, it provides strong values for new and renovated buildings. Our smooth, fine surface quality from Bilshausen, combined with the impressive choice of sample colours delights developers.
Select your flat roof tile in your desired colour from a total of 17 different, bright colours from standard natural red to high-quality avant-garde glazing. Optimal side folds paired with the high security of the four-tile corner produced with the new J11v will delight you.

Dimensions

Dimensions
Dimensions Natural red - Fine engobes (J11v VAR) Collection Avantgarde (J11v VA)
Overall dimension 30,4 x 44,5 cm29,1 x 44,0 cm
Cover length (CL) 33,3 - 36,5 cm32,8 - 36,0 cm
Cover width (CW) 24,6 cm23,6 cm
Required no. of units per m² 11,1 - 12,211,7 - 12,8
Weight per unit ca. 4,4 kgca. 4,2 kg
FAL pcs pro running meter ca. 4,1ca. 4,2
Double beading pcs pro running meter ca. 2,7ca. 2,8
verge pcs. pro running meter ca. 2,7ca. 2,8
Packaging Unit 60 St.64 St.
Piece/pallet 240256
Recommended roof pitch ≥ 22°≥ 22°

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 75 70 70 65 65 60 45 - -
F1v 45 45 40 30 25 20 15 - -
F6v 90 85 85 80 75 70 65 60 -
F9 80 75 75 75 70 65 55 55 -
F16 90 85 85 85 75 70 70 65 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 115 105 100 95 85 80 75 - -
F1v 140 140 135 130 115 110 110 - -
F6v 130 115 120 115 110 105 90 80 -
F9 100 95 90 85 80 75 60 55 -
F16 120 115 105 100 95 85 75 65 -

Latt distance ridge LAF /* FAL in mm

Latt distance ridge LAF /* FAL in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F6v + FAL 65 55 50 45 40 30 20 - -
F9 + FAL 50 45 35 - - - - - -
F16 + FAL 65 60 55 50 40 35 30 30 25

Ridge-batten distance FLA /* FAL in mm

Ridge-batten distance FLA /* FAL in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F6v + FAL 140 130 125 110 105 105 105 - -
F9 + FAL 105 100 100 - - - - - -
F16 + FAL 125 115 110 100 90 80 80 80 70

Lath spacing ridge (LAF) in mm

Lath spacing ridge (LAF) in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
J11v 40 30 25 25 20 15 10 - -
J11v mit FAL 30 25 20 - - - - - -

Ridge-batten distance FLA for ridge universal 90°

Ridge-batten distance FLA for ridge universal 90°
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
J11v 115 105 100 95 90 85 85 - -
J11v mit FAL 120 110 95 - - - - - -
Example ridge
Example ridge
Double beading J11v
Double beading
Verge J11v
Verge

Dachziegel-Technik App

Mit unserer App Dachziegel Technik bleiben Sie immer auf dem neuesten Stand und erhalten alle wichtigen Informationen und technische Daten rund um unsere Produkte - auch offline!

Mehr über die App erfahren

Header für das kostenlose Werkzeug App Dachziegel Technik

Rechner für Schneeschutzsysteme

Unser Rechner für Schneeschutzsysteme wurde entwickelt, um Ihnen einen Überblick über die zu erwartenden Schneelasten zu geben und dient als Orientierungshilfe für die Schneesicherung Ihres Daches.

Zum Rechner für Schneeschutzsysteme

teaser-page--large
