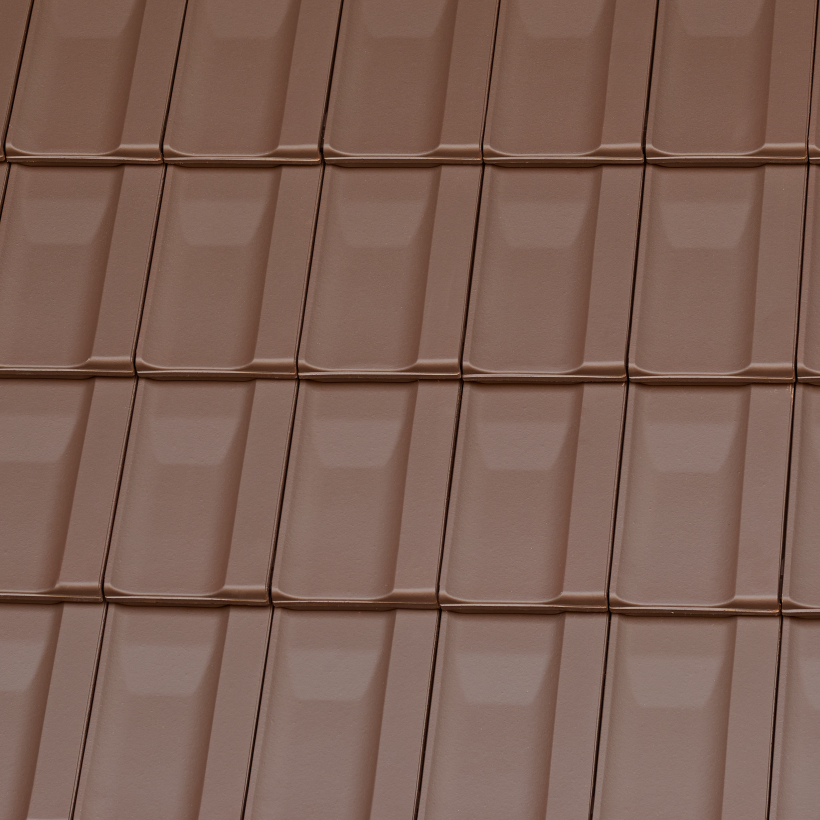

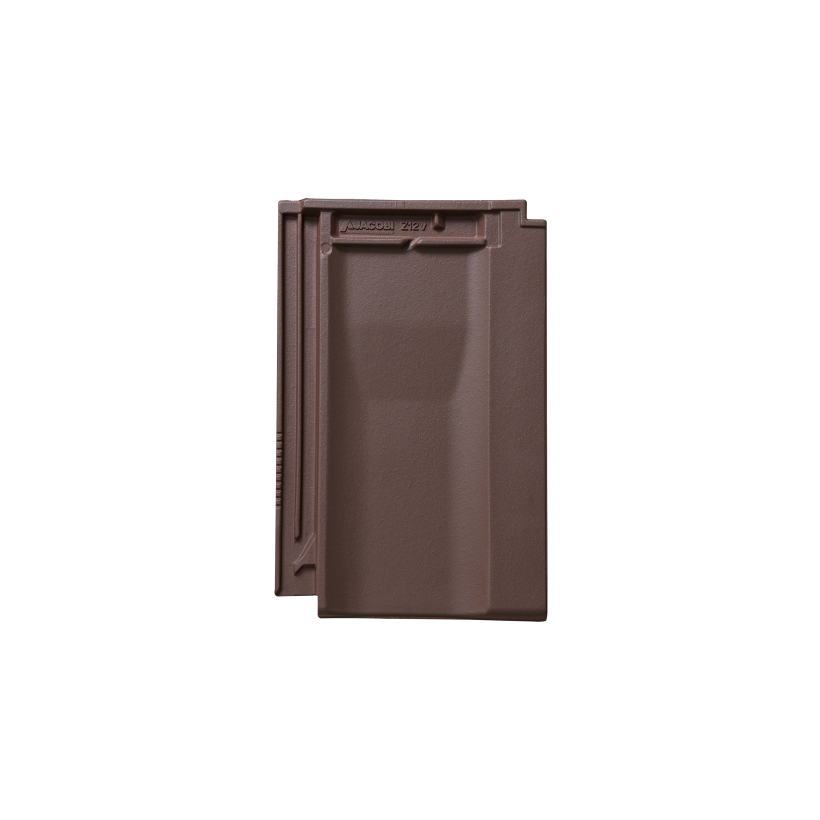

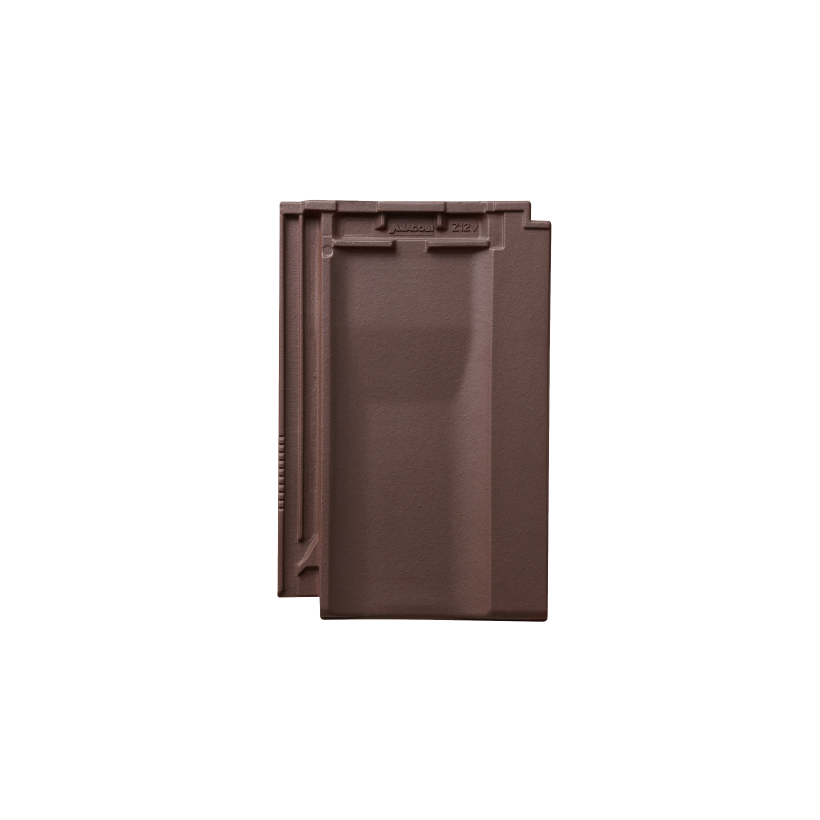

The standard interlocking tile Z12v from our production site in Langenzenn impresses with its interlocking system for optimum water flow and its discreet, high-quality surfaces. The centre format of 12-14 tiles per m² creates a balanced and aesthetically pleasing appearance on roofs of all types – whether old or new, large or small. The Z12v combines the timeless elegance of a reform tile with optimum functionality and blends unobtrusively into any roof landscape.
Z12v
Dimensions
Surface & Color
Selected surface/color: brown
Natural red/engobed
Are you looking for expert advice?
Contact
Can't find the variant you want?
Request individual tile
Overall dimension
27,0 x 42,0 cm
Cover length (CL)
30,0- 35,5 cm
Cover width (CW)
23,1 cm
Required no. of units per m²
12,2 - 14,4
Weight per unit
3,7 kg
Recommended roof pitch
≥ 25°
Dimensions
| Dimensions | default |
|---|---|
| Dimensions Dimensions | 27,0 x 42,0 cm |
| CL without verge | 30,0 - 35,5 cm |
| Cover width (CW) | 32,5 – 35,5 cm |
| CL working on verge | 30,0 – 35,5 cm |
| Cover width (CW) | 23,1 cm |
| Required no. of units per m² | 12,2 - 14,4 |
| Weight per unit | ca. 3.7 kg |
| Recommended roof pitch | ≥ 25° |
Latt distance ridge LAF in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| Ridge Tradition | 80 | 80 | 70 | 70 | 65 | 55 | 60 | 60 | - |
| cylindrical First | 90 | 90 | 85 | 85 | 80 | 75 | 75 | 65 | - |
| Ridge universal 90° | 70 | 70 | 60 | 45 | 40 | 40 | 35 | 35 | - |
Ridge-batten distance FLA in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| Ridge Tradition | 130 | 120 | 115 | 105 | 100 | 90 | 80 | 70 | - |
| cylindrical First | 115 | 100 | 85 | 80 | 70 | 60 | 55 | 40 | - |
| Ridge universal 90° | 75 | 70 | 70 | 65 | 60 | 60 | 55 | 40 | - |
The standard interlocking tile Z12v from our production site in Langenzenn impresses with its interlocking system for optimum water flow and its discreet, high-quality surfaces. The centre format of 12-14 tiles per m² creates a balanced and aesthetically pleasing appearance on roofs of all types – whether old or new, large or small. The Z12v combines the timeless elegance of a reform tile with optimum functionality and blends unobtrusively into any roof landscape.
Dimensions
| Dimensions | default |
|---|---|
| Dimensions Dimensions | 27,0 x 42,0 cm |
| CL without verge | 30,0 - 35,5 cm |
| Cover width (CW) | 32,5 – 35,5 cm |
| CL working on verge | 30,0 – 35,5 cm |
| Cover width (CW) | 23,1 cm |
| Required no. of units per m² | 12,2 - 14,4 |
| Weight per unit | ca. 3.7 kg |
| Recommended roof pitch | ≥ 25° |
Latt distance ridge LAF in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| Ridge Tradition | 80 | 80 | 70 | 70 | 65 | 55 | 60 | 60 | - |
| cylindrical First | 90 | 90 | 85 | 85 | 80 | 75 | 75 | 65 | - |
| Ridge universal 90° | 70 | 70 | 60 | 45 | 40 | 40 | 35 | 35 | - |
Ridge-batten distance FLA in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| Ridge Tradition | 130 | 120 | 115 | 105 | 100 | 90 | 80 | 70 | - |
| cylindrical First | 115 | 100 | 85 | 80 | 70 | 60 | 55 | 40 | - |
| Ridge universal 90° | 75 | 70 | 70 | 65 | 60 | 60 | 55 | 40 | - |
Do you have your own ideas? Please feel free to contact us
For individual advice, you have the opportunity to tell us your wishes directly via vertrieb@dachziegel.de or using the Contact form.
