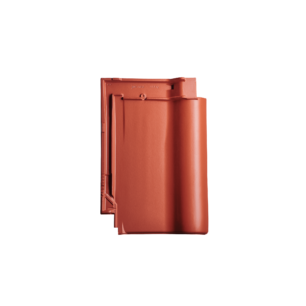

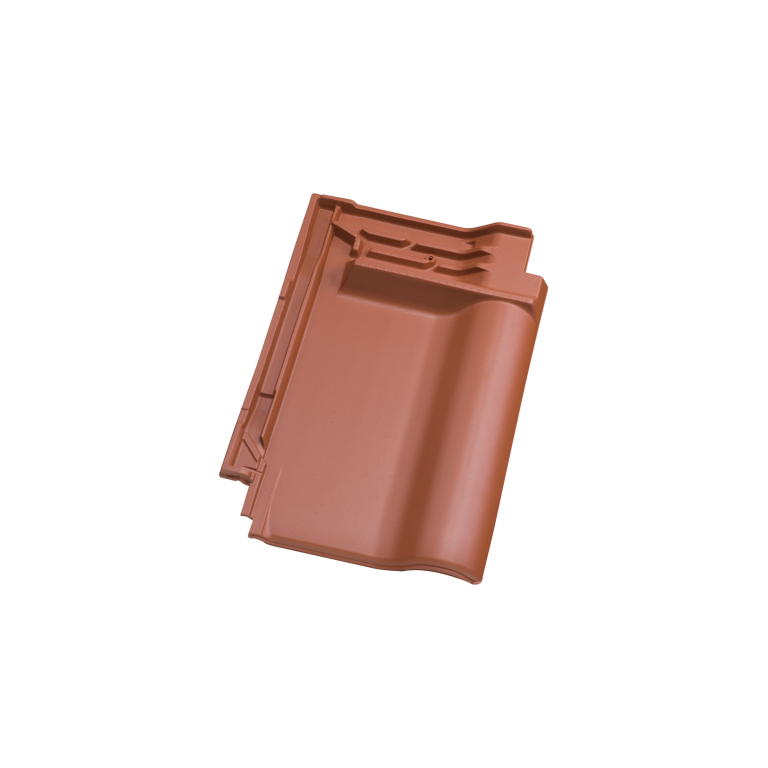

Ridge connection air tile FAL J11v
Special shape tiles · FAL
Our J11v ridge connection air tile is the ideal solution for a fully ceramic roof.
In addition to a high-quality and durable roof finish, it ensures permanent rear ventilation on the roof and offers protection against rain penetration and high wind loads. The FAL is quick and easy to install. The elimination of the ridge tape also eliminates an additional work step. quick and easy to install. The elimination of the ridge tape also eliminates an additional work step.
- Zubehör
- Ceramic accessories
- Number of available colors
- 17 Farben
Maße
| Cover length | 33,3 - 36,5 cm |
|---|---|
| Cover length CA | 32,8 – 36 cm |
| Cover width | 24,6 cm |
| Ventilation cross-section/roof tile | 18 cm² |
| Ventilation cross-section/rm | 152 cm² |
| Weight | 4,4 kg |
| Unit requirement/rm | 4,1 |
| Recommended roof pitch | ≥ 22° |
