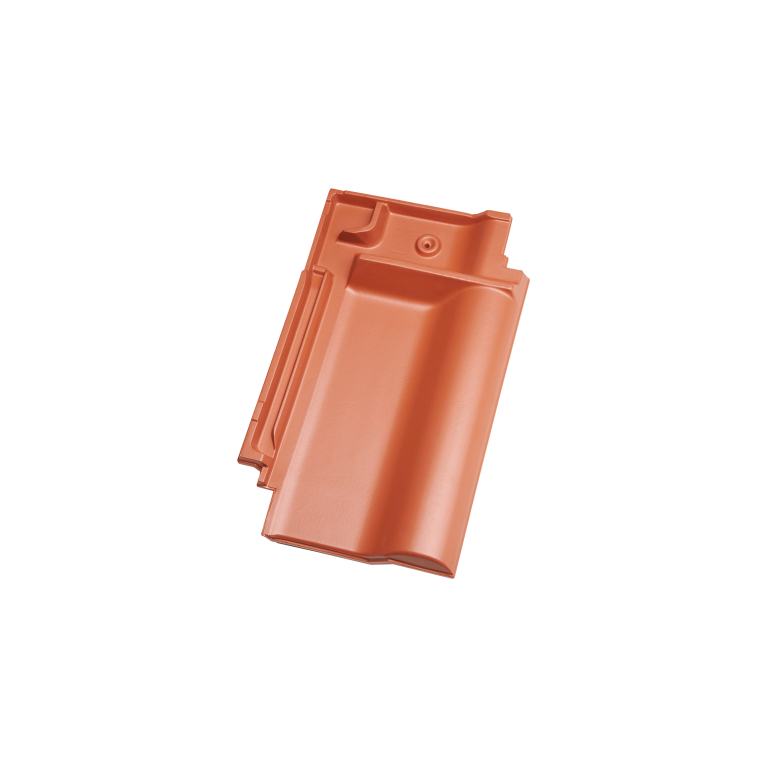

Ridge connection air tile FAL J13v

Special shape tiles · FAL

Our J13v ridge connection air tile is the ideal solution for a fully ceramic roof.
In addition to a high-quality and durable roof finish, it ensures permanent rear ventilation on the roof and offers protection against rain penetration and high wind loads. The FAL is quick and easy to install. The elimination of the ridge tape also eliminates an additional work step.

Zubehör
Ceramic accessories
Number of available colors
14 Farben

Maße

Maße
Cover length 32,6 – 35,6 cm
Cover length CA 31,8 – 34,8 cm
Cover width 21,7 cm
Ventilation cross-section/tile 18 cm²
Ventilation cross-section/rm 172 cm²
Weight 3,9 kg
Unit requirement/rm 4,7
Recommended roof pitch ≥ 22°

Can be combined with the following roof tiles

  • J13v

    • Dachziegelfarbe naturrot
    • Dachziegelfarbe altrot
    • Dachziegelfarbe dunkelbraun
    • Dachziegelfarbe altschwarz

    14 Colors available

    Flachdachziegel J13v in altrot
