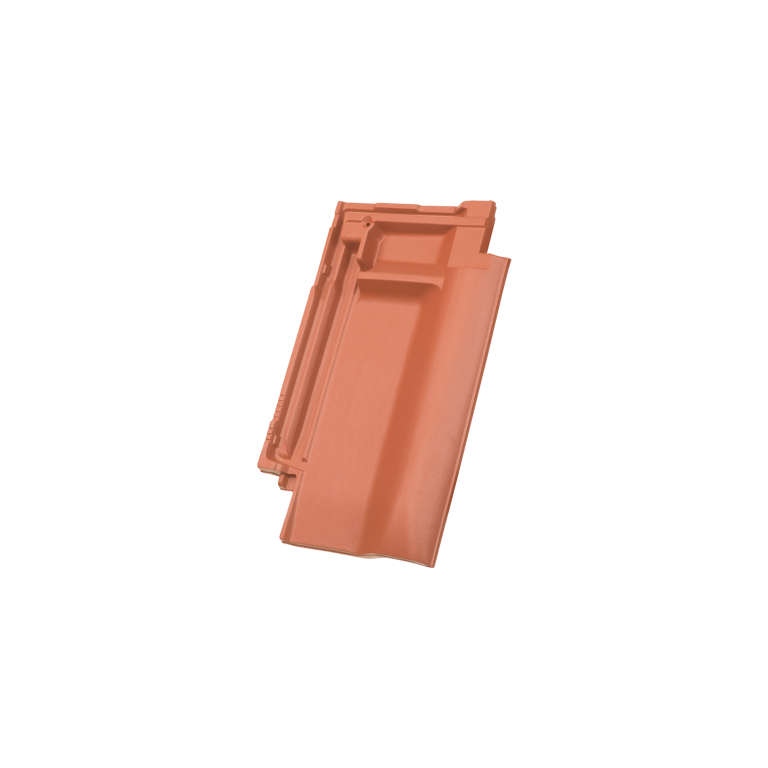

Ridge connection air tile W6v
Special shape tiles · FAL
Our W6v ridge connection vent tile is the ideal solution for a fully ceramic roof.
In addition to a high-quality and durable roof finish, it ensures permanent rear ventilation on the roof and offers protection against rain penetration and high wind loads. The FAL is quick and easy to install. The elimination of the ridge tape also eliminates an additional work step.
- Zubehör
- Ceramic accessories
- Number of available colors
- 9 Farben
Maße
| Cover length | 32,8 – 37,8 cm |
|---|---|
| Cover width | 21,7 cm |
| Ventilation cross-section/tile | 16 cm² |
| Ventilation cross-section/rm | 150 cm² |
| Weight | 3,8 kg |
| Unit requirement/rm | 4,6 |
| Requirement unit/rm | ≥ 22° |
