Sanitary fan Z2
Generally

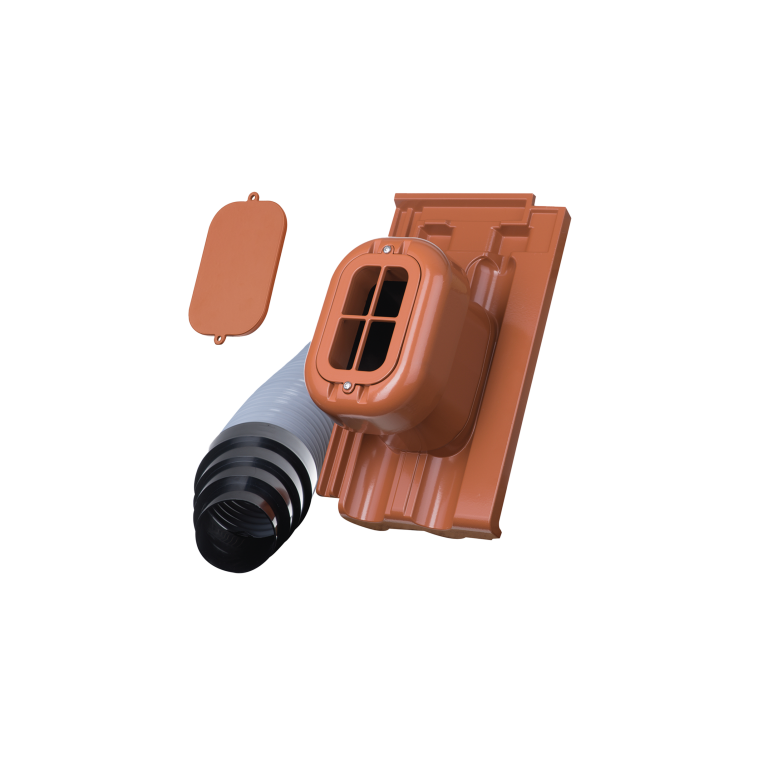

The sanitary fan for our Z2 double troughed interlocking tile is used for rainproof roof ducts for ventilating sanitary areas. It is made of unbreakable, durable die-cast aluminum and has the same rebate system as the Z2 flat tile. The sanitary vent is supplied with a DN 125 flexible hose, cap and sealing sleeve and is color-coordinated with the selected roof tile.
- Zubehör
- Non-ceramic accessories
- Number of available colors
- 5 Farben
Maße
Overall dimension | 25 x 42,3 cm |
---|---|
Cover length | 34,5 - 35,5 cm |
Cover width | 20,5 cm |
Passage size | 12,5 cm |
