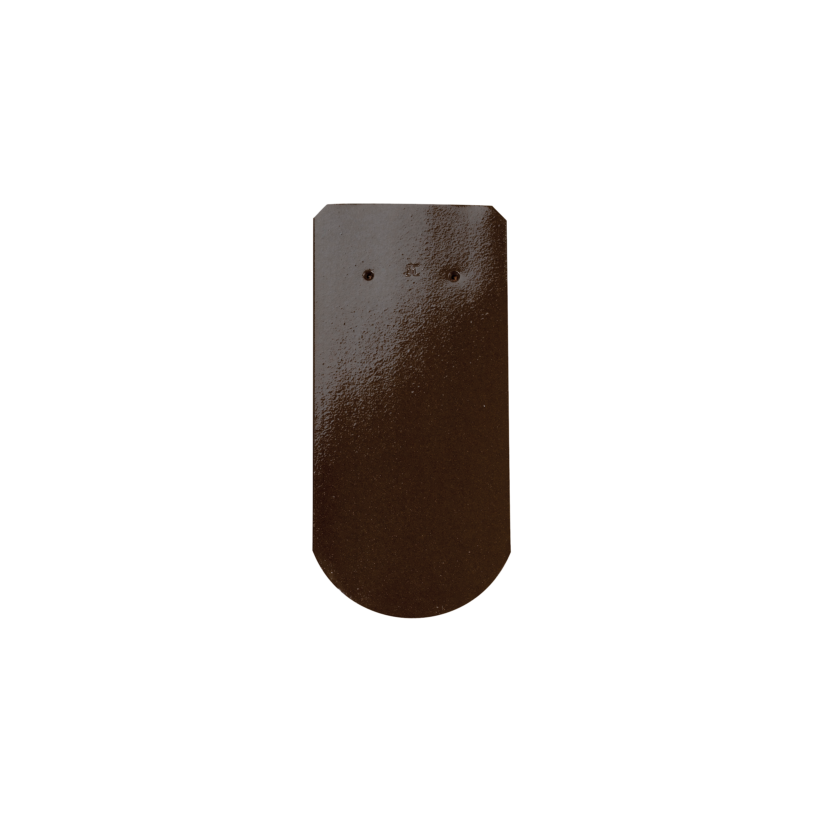

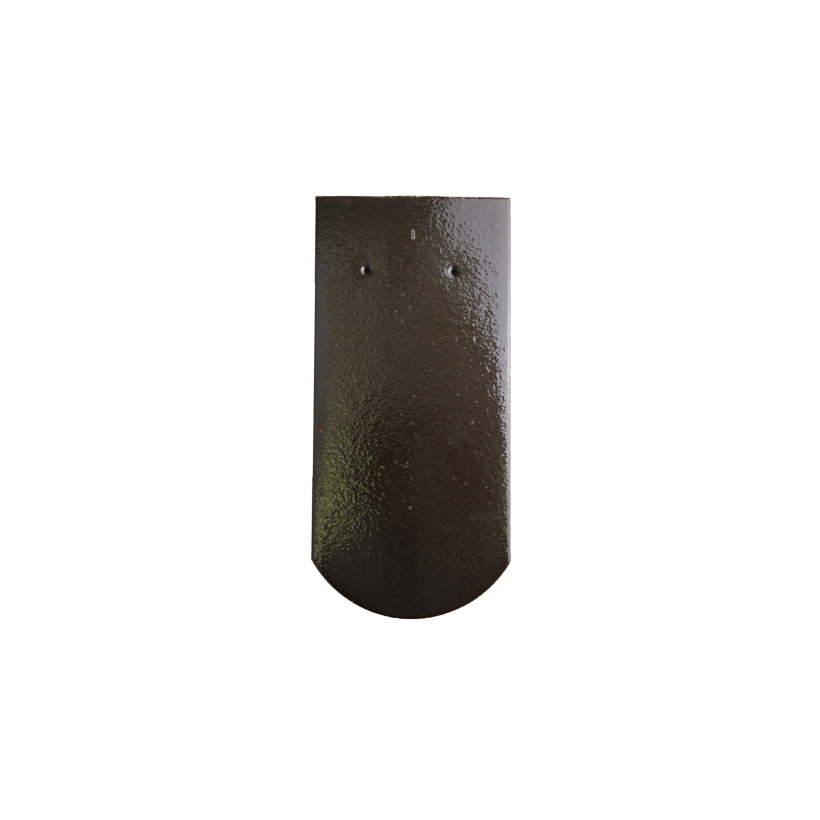

Today it is still one of the tiles that make every roof unique and special. Our southern German plain tile in the 18×38 format is available as a classic round cut, modern straight cut and in many other shapes such as segment cut or diamond-pointed. You can also choose from a variety of tried-and-tested and trendy colors and find the right plain tile for your building project.
Southern Plain tile 18×38
Plain Tile
Dimensions
Surface & Color
Selected surface/color: maroon
Natural red/engobed
Fine engobes
Collection Avantgarde
Special series
Are you looking for expert advice?
Contact person/ dealer directory
Can't find the variant you want?
Request individual tile
Overall dimension
18,0 x 38,0 cm
Cover length (CL)
15,0 - 16,0 cm (DD)
Cover width (CW)
Required no. of units per m²
34 - 39
Weight per unit
1,8 - 2,0 kg
Recommended roof pitch
≥ 30°
Dimensions
| Dimensions | default |
|---|---|
| Overall dimensions | 18,0 x 38,0 cm |
| Cover length (CL) | 15,0 - 16,0 cm |
| Cover width (CW) | 30,0 - 32,0 cm |
| Required no. of units per m² | 34 - 39 |
| Weight per unit | 1,8 - 2,0 kg |
| Recommended roof pitch | ≥ 30° |
Latt distance ridge LAF in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| 125 | 120 | 105 | 115 | 105 | 100 | 90 | 95 | - | |
| 100 | 100 | 100 | 90 | 90 | 90 | 90 | 90 | - | |
| 85 | 85 | 75 | 75 | 65 | 65 | 60 | 60 | - | |
Ridge-batten distance FLA in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| 95 | 95 | 85 | 80 | 70 | 60 | 65 | 50 | - | |
| 90 | 90 | 80 | 80 | 70 | 65 | 60 | 60 | - | |
| 85 | 85 | 80 | 80 | 75 | 75 | 65 | 65 | - | |
Today it is still one of the tiles that make every roof unique and special. Our southern German plain tile in the 18×38 format is available as a classic round cut, modern straight cut and in many other shapes such as segment cut or diamond-pointed. You can also choose from a variety of tried-and-tested and trendy colors and find the right plain tile for your building project.
Dimensions
| Dimensions | default |
|---|---|
| Overall dimensions | 18,0 x 38,0 cm |
| Cover length (CL) | 15,0 - 16,0 cm |
| Cover width (CW) | 30,0 - 32,0 cm |
| Required no. of units per m² | 34 - 39 |
| Weight per unit | 1,8 - 2,0 kg |
| Recommended roof pitch | ≥ 30° |
Latt distance ridge LAF in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| 125 | 120 | 105 | 115 | 105 | 100 | 90 | 95 | - | |
| 100 | 100 | 100 | 90 | 90 | 90 | 90 | 90 | - | |
| 85 | 85 | 75 | 75 | 65 | 65 | 60 | 60 | - | |
Ridge-batten distance FLA in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| 95 | 95 | 85 | 80 | 70 | 60 | 65 | 50 | - | |
| 90 | 90 | 80 | 80 | 70 | 65 | 60 | 60 | - | |
| 85 | 85 | 80 | 80 | 75 | 75 | 65 | 65 | - | |
Do you have your own ideas? Please feel free to contact us
For individual advice, you have the opportunity to tell us your wishes directly via vertrieb@dachziegel.de or using the Contact form.
