Southern Plain tile 18×38

Plain Tile

Surface & Color

Selected surface/color:

Natural red/engobed

Fine engobes

Are you looking for expert advice?
Contact person/ dealer directory

Can't find the variant you want?
Request individual tile

Overall dimension

18,0 x 40,0 cm

Cover length (CL)

15,0 - 16,0 cm (DD)

Cover width (CW)

Required no. of units per m²

34 - 39

Weight per unit

1,8 - 2,0 kg

Recommended roof pitch

≥ 30°

Today it is still one of the tiles that make every roof unique and special. Our southern German plain tile in the 18×38 format is available as a classic round cut, modern straight cut and in many other shapes such as segment cut or diamond-pointed. You can also choose from a variety of tried-and-tested and trendy colors and find the right plain tile for your building project.

Dimensions

Dimensions
Dimensions default
Overall dimensions 18,0 x 40,0 cm
Cover length (CL) 15,0 - 16,0 cm
Cover width (CW) 30,0 - 32,0 cm
Required no. of units per m² 34 - 39
Weight per unit 1,8 - 2,0 kg
Recommended roof pitch ≥ 30°

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
125 120 105 115 105 100 90 95 -
100 100 100 90 90 90 90 90 -
85 85 75 75 65 65 60 60 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
95 95 85 80 70 60 65 50 -
90 90 80 80 70 65 60 60 -
85 85 80 80 75 75 65 65 -

Today it is still one of the tiles that make every roof unique and special. Our southern German plain tile in the 18×38 format is available as a classic round cut, modern straight cut and in many other shapes such as segment cut or diamond-pointed. You can also choose from a variety of tried-and-tested and trendy colors and find the right plain tile for your building project.

Dimensions

Dimensions
Dimensions default
Overall dimensions 18,0 x 40,0 cm
Cover length (CL) 15,0 - 16,0 cm
Cover width (CW) 30,0 - 32,0 cm
Required no. of units per m² 34 - 39
Weight per unit 1,8 - 2,0 kg
Recommended roof pitch ≥ 30°

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
125 120 105 115 105 100 90 95 -
100 100 100 90 90 90 90 90 -
85 85 75 75 65 65 60 60 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
95 95 85 80 70 60 65 50 -
90 90 80 80 70 65 60 60 -
85 85 80 80 75 75 65 65 -

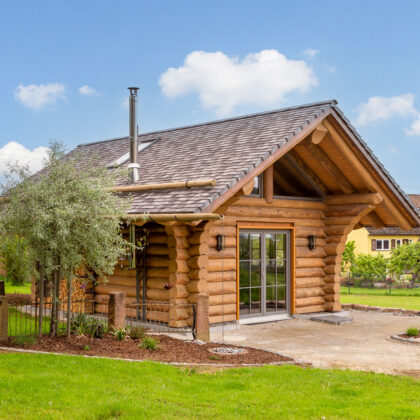

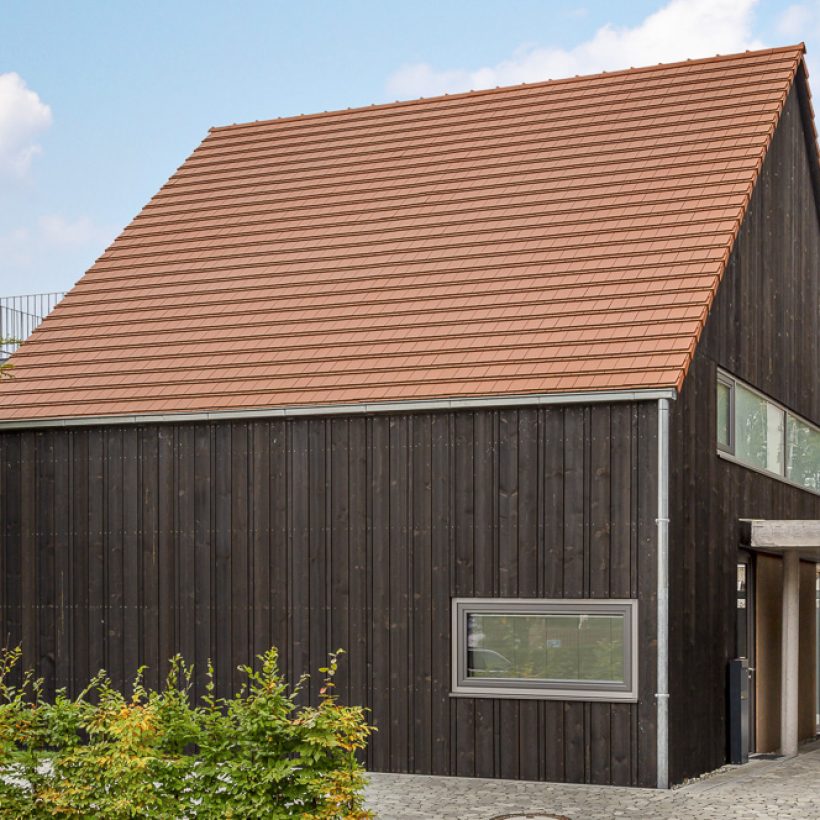

Our roof tiles on the roof

References

Do you have your own ideas? Please feel free to contact us

For individual advice, you have the opportunity to tell us your wishes directly via vertrieb@dachziegel.de or using the Contact form.
