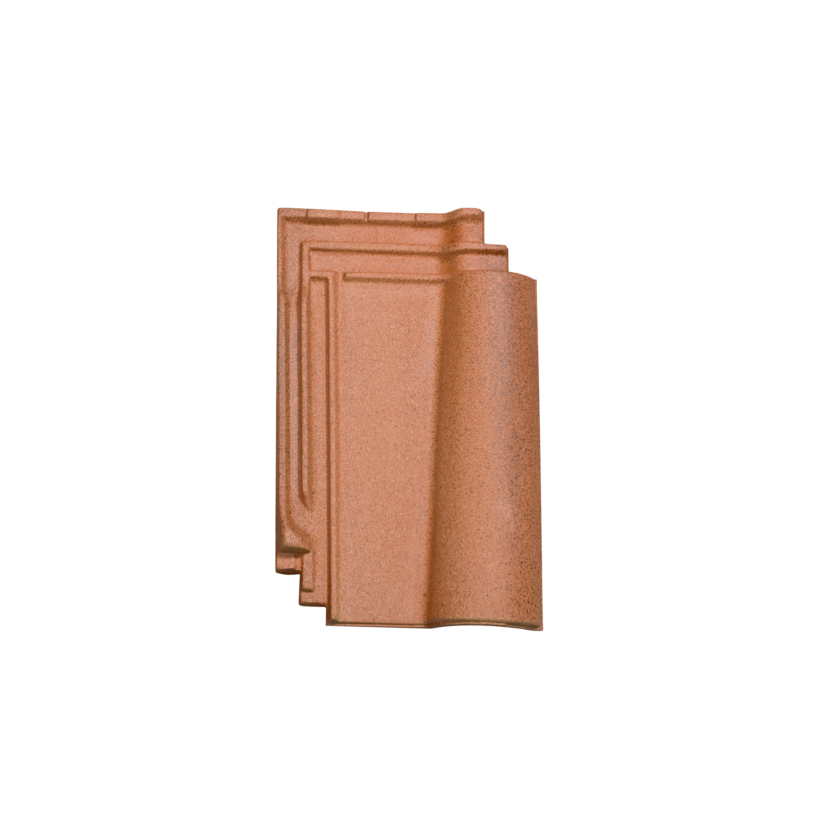

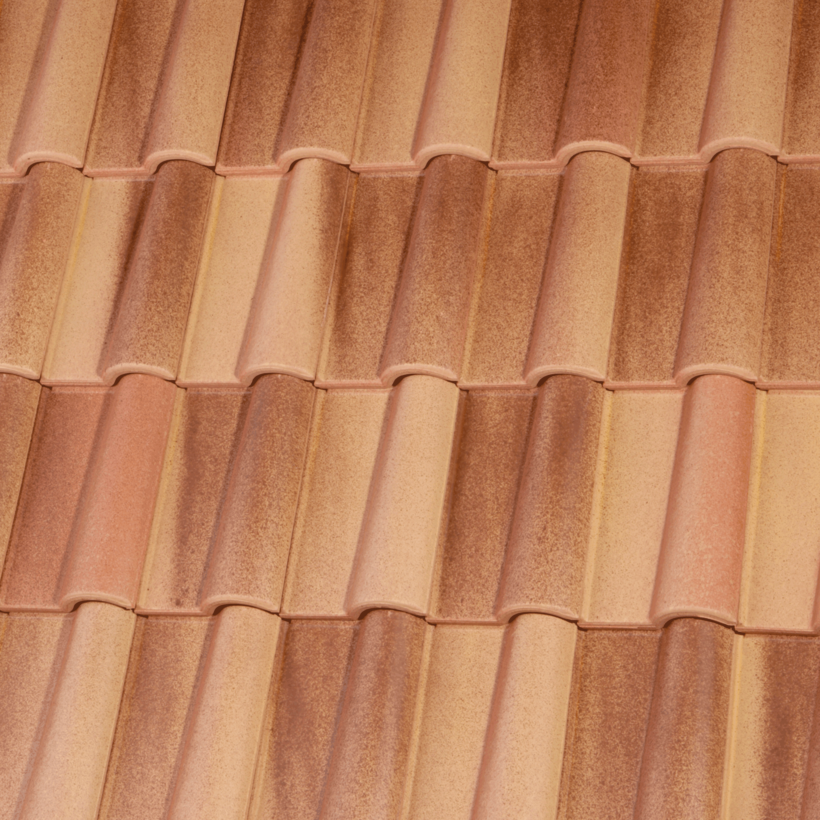

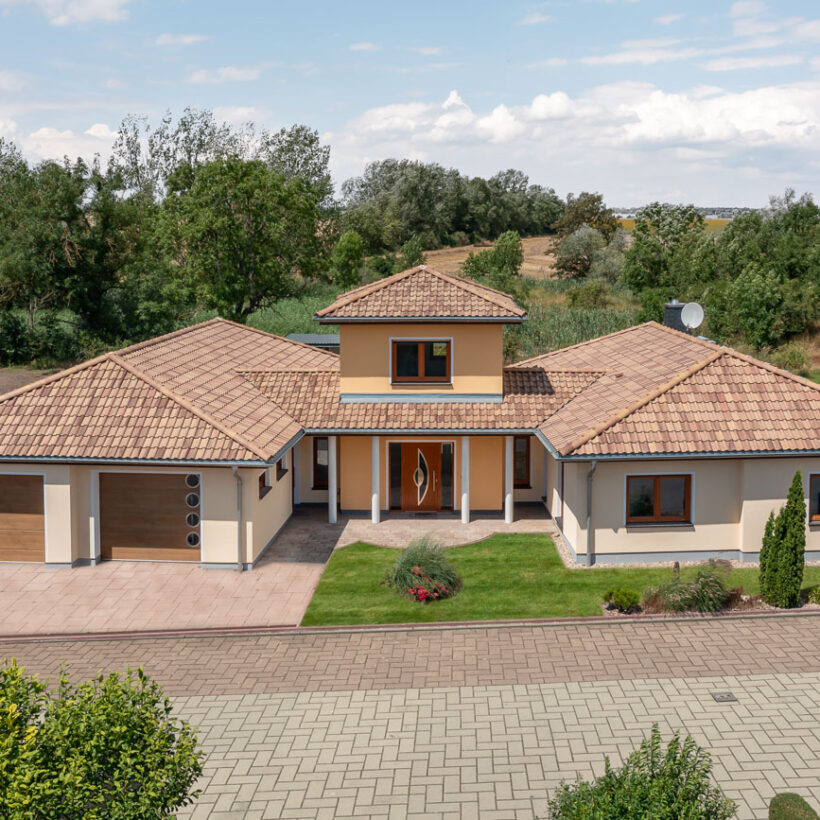

The special play of light and dark on these Roman, Mediterranean pantiles is shown particularly well when used on bungalows or Tuscan houses with the warm ochre-red shades in the special Bella Casa colour. The doubled side and head folds and a triple cover in the four-tile corner also offers you a roof tile with a firm hold on any roof.
Marko
Dimensions
Surface & Color
Selected surface/color: Bella Casa
Natural red/engobed
Special series
Are you looking for expert advice?
Contact
Can't find the variant you want?
Request individual tile
Overall dimension
26,5 x 42,0 cm
Cover length (CL)
34,1 cm
Cover width (CW)
20,1 cm
Required no. of units per m²
14,6
Weight per unit
ca. 3,5 kg
Recommended roof pitch
≥ 22°
Dimensions
| Dimensions | default |
|---|---|
| Overall dimensions | 26,5 x 42,0 cm |
| Cover length (CL) | 34,1 cm |
| Cover width (CW) | 20,1 cm |
| Required no. of units per m² | 14,6 |
| Weight per unit | ca. 3,5 kg |
| FAL pcs. per rm | ca. 5,0 |
| Double beading pcs. per rm | ca. 2,9 |
| Verge pcs. per rm | ca. 2,9 |
| Smallest packaging unit | 56 St. |
| Pcs/pallet | 224 |
| Recommended roof pitch | ≥ 22° |
Latt distance ridge LAF in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| zylindrisch | 90 | 85 | 80 | 75 | 75 | 70 | 70 | 65 | - |
Ridge-batten distance FLA in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| zylindrisch | 105 | 105 | 90 | 80 | 75 | 70 | 55 | 40 | - |
Latt distance ridge LAF /* FAL in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| zylindrisch + VFL | 50 | 45 | 40 | 40 | 35 | 35 | 35 | 30 | 25 |
Ridge-batten distance FLA /* FAL in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| zylindrisch + VFL | 110 | 110 | 100 | 90 | 80 | 70 | 60 | 50 | 50 |
The special play of light and dark on these Roman, Mediterranean pantiles is shown particularly well when used on bungalows or Tuscan houses with the warm ochre-red shades in the special Bella Casa colour. The doubled side and head folds and a triple cover in the four-tile corner also offers you a roof tile with a firm hold on any roof.
