J160-PV Indach-Modul-Lösung

Dimensions

Surface & Color

old black

Natural red/engobed

Fine engobes

Order sample tiles

Are you looking for expert advice?
Contact

Can't find the variant you want?
Request individual tile

Overall dimension

146,0 x 43,7 cm

Cover length (CL)

36,0 cm

Cover width (CW)

140,0 cm

Required no. of units per m²

2 Module ersetzen 12 Ziegel

Weight per unit

ca. 7,4 kg

Recommended roof pitch

≥ 22°

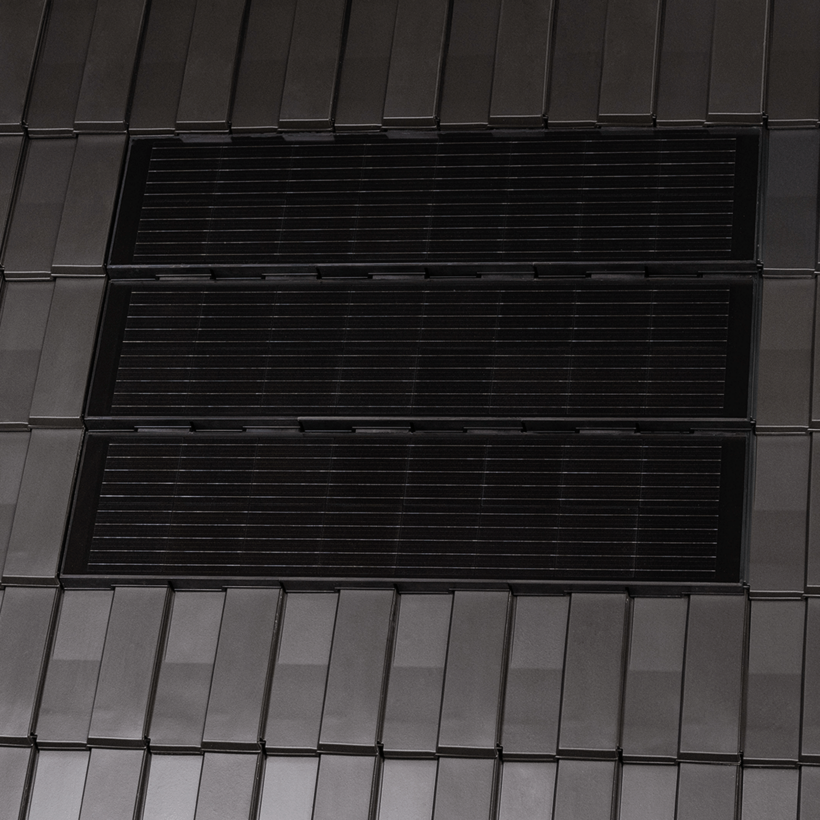

The J160-PV in-roof module solution is a technically powerful photovoltaic system that can be unobtrusively integrated into the roof surface. Despite the photovoltaic system, the roof becomes a modern eye-catcher and an architectural unit. One module produces approximately 85 watts of power and replaces exactly six J160 roof tiles. It is color coordinated with the Edelengobe noble black but is basically compatible with all J160 colors.

The combination of J160-PV in-roof modules and our clay products creates a high-quality roof. Can be covered with roofs up to a standard roof inclination of 15 degrees.

Dimensions

Dimensions
Dimensions default
Overall dimensions 146,0 x 43,7 cm
Cover length (CL) 36,0 cm
Cover width (CW) 140,0 cm
Required no. of units per m² 2 Module ersetzen 12 Ziegel
Weight per unit ca. 7,4 kg
Piece/pallet 24 Module je Transportkiste
Recommended roof pitch ≥ 22°
Minimum roof pitch ≥ 15°
Performance per module ca. 85 Watt
Performance per m² ca. 170 Watt

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F21 50 40 40 35 30 25 25 20 -
F1v 60 55 45 45 40 30 25 20 -
F6v 60 55 50 45 45 40 35 30 -
F9 50 50 45 40 35 30 30 20 -
F16 60 55 55 45 45 40 30 20 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F21 145 140 135 125 115 115 105 90 -
F1v 135 130 125 120 105 100 95 95 -
F6v 135 130 125 120 105 100 95 95 -
F9 110 105 100 95 85 50 70 70 -
F16 125 120 110 105 90 90 90 90 -

Lath spacing ridge (LAF) in mm

Lath spacing ridge (LAF) in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
J160 40 35 30 20 20 15 5 5 5

Ridge-batten distance FLA for ridge universal 90°

Ridge-batten distance FLA for ridge universal 90°
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
J160 95 90 85 85 85 85 75 60 55
Skizze Dachschnitt mit Trendziegel J160
Example ridge
Verge j160
Verge
Double beading J160
Double beading
