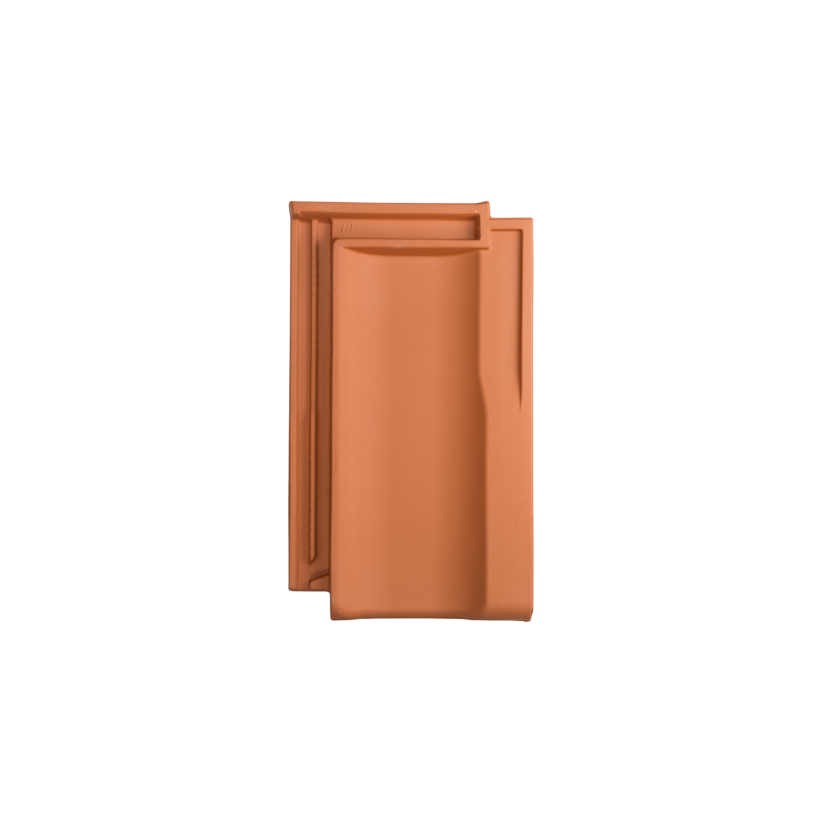

Z7v

Surface & Color

Selected surface/color: natural red

Natural red/engobed

Are you looking for expert advice?
Contact

Can't find the variant you want?
Request individual tile

Overall dimension

25,0 x 42,7 cm

Cover length (CL)

25,0 - 35,0 cm

Cover width (CW)

20,5 cm

Required no. of units per m²

13,9 - 19,5

Weight per unit

ca. 3,5 kg

Recommended roof pitch

≥ 30°

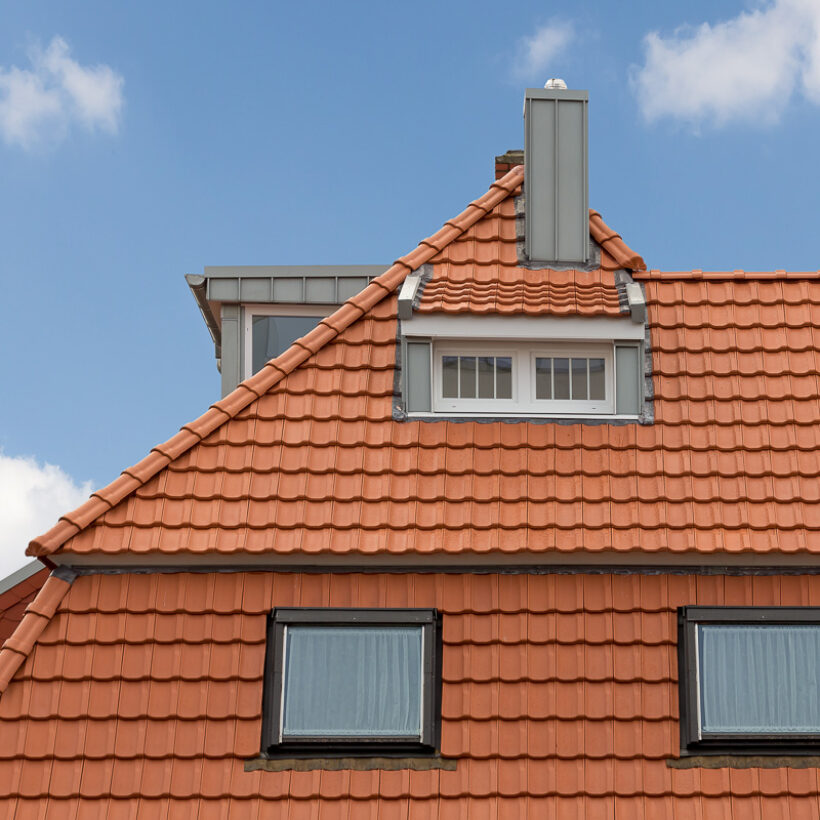

You can cover different bar widths with the Z7v reform tile and therefore excellently use them to renovate old roofs. Covering without edging, it offers a 100 millimetre sliding range. This is highly valued by roofers and carpenters. They can produce beautiful, restrained roofs with this interlocking tile. At the same time it is also suitable for angled roof designs. As a result of its once strong use in renovation, it is still the second most frequently produced tile at Jacobi-Walther.

Dimensions

Dimensions
Dimensions default
Overall dimensions 25,0 x 42,7 cm
Cover length (CL) with verge 32,5 - 35,0 cm
CL Working on verge 29,0 - 32,5 cm
CL without verge 25,0 - 35,0 cm
Cover width (CW) 20,5 cm
Required no. of units per m² 13,9 - 19,5
Weight per unit ca. 3,5 kg
Double beading pcs. per rm ca. 2,9
Verge pcs. per rm ca. 2,9
Smallest packaging unit 56 St.
Pcs/pallet 280
Recommended roof pitch ≥ 30°

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 - 65 60 50 45 40 40 40 -
F1v - 65 60 50 45 40 40 40 -
F6v - 70 65 60 55 55 55 50 -
F9 - 75 65 65 65 60 55 50 -
F16 - 85 80 75 70 70 70 60 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 - 90 90 85 75 70 60 55 -
F1v - 120 115 110 100 95 85 75 -
F6v - 120 115 105 95 85 80 70 -
F9 - 90 85 75 65 60 50 45 -
F16 - 100 95 90 85 75 60 50 -

Lath spacing ridge (LAF) in mm

Lath spacing ridge (LAF) in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
Z7v - 45 35 35 35 30 45 5 5

Ridge-batten distance FLA for ridge universal 90°

Ridge-batten distance FLA for ridge universal 90°
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
Z7v - 95 85 80 80 75 75 70 65
Skizze mit Dachschnitt von Reformziegel WALTHER-tegula
Example ridge
Verge
Verge
Double beading Z7v
Double beading

Dachziegel-Technik App

Mit unserer App Dachziegel Technik bleiben Sie immer auf dem neuesten Stand und erhalten alle wichtigen Informationen und technische Daten rund um unsere Produkte - auch offline!

Mehr über die App erfahren

Header für das kostenlose Werkzeug App Dachziegel Technik

Rechner für Schneeschutzsysteme

Unser Rechner für Schneeschutzsysteme wurde entwickelt, um Ihnen einen Überblick über die zu erwartenden Schneelasten zu geben und dient als Orientierungshilfe für die Schneesicherung Ihres Daches.

Zum Rechner für Schneeschutzsysteme

teaser-page--large

You can cover different bar widths with the Z7v reform tile and therefore excellently use them to renovate old roofs. Covering without edging, it offers a 100 millimetre sliding range. This is highly valued by roofers and carpenters. They can produce beautiful, restrained roofs with this interlocking tile. At the same time it is also suitable for angled roof designs. As a result of its once strong use in renovation, it is still the second most frequently produced tile at Jacobi-Walther.

Dimensions

Dimensions
Dimensions default
Overall dimensions 25,0 x 42,7 cm
Cover length (CL) with verge 32,5 - 35,0 cm
CL Working on verge 29,0 - 32,5 cm
CL without verge 25,0 - 35,0 cm
Cover width (CW) 20,5 cm
Required no. of units per m² 13,9 - 19,5
Weight per unit ca. 3,5 kg
Double beading pcs. per rm ca. 2,9
Verge pcs. per rm ca. 2,9
Smallest packaging unit 56 St.
Pcs/pallet 280
Recommended roof pitch ≥ 30°

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 - 65 60 50 45 40 40 40 -
F1v - 65 60 50 45 40 40 40 -
F6v - 70 65 60 55 55 55 50 -
F9 - 75 65 65 65 60 55 50 -
F16 - 85 80 75 70 70 70 60 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 - 90 90 85 75 70 60 55 -
F1v - 120 115 110 100 95 85 75 -
F6v - 120 115 105 95 85 80 70 -
F9 - 90 85 75 65 60 50 45 -
F16 - 100 95 90 85 75 60 50 -

Lath spacing ridge (LAF) in mm

Lath spacing ridge (LAF) in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
Z7v - 45 35 35 35 30 45 5 5

Ridge-batten distance FLA for ridge universal 90°

Ridge-batten distance FLA for ridge universal 90°
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
Z7v - 95 85 80 80 75 75 70 65
Skizze mit Dachschnitt von Reformziegel WALTHER-tegula
Example ridge
Verge
Verge
Double beading Z7v
Double beading
