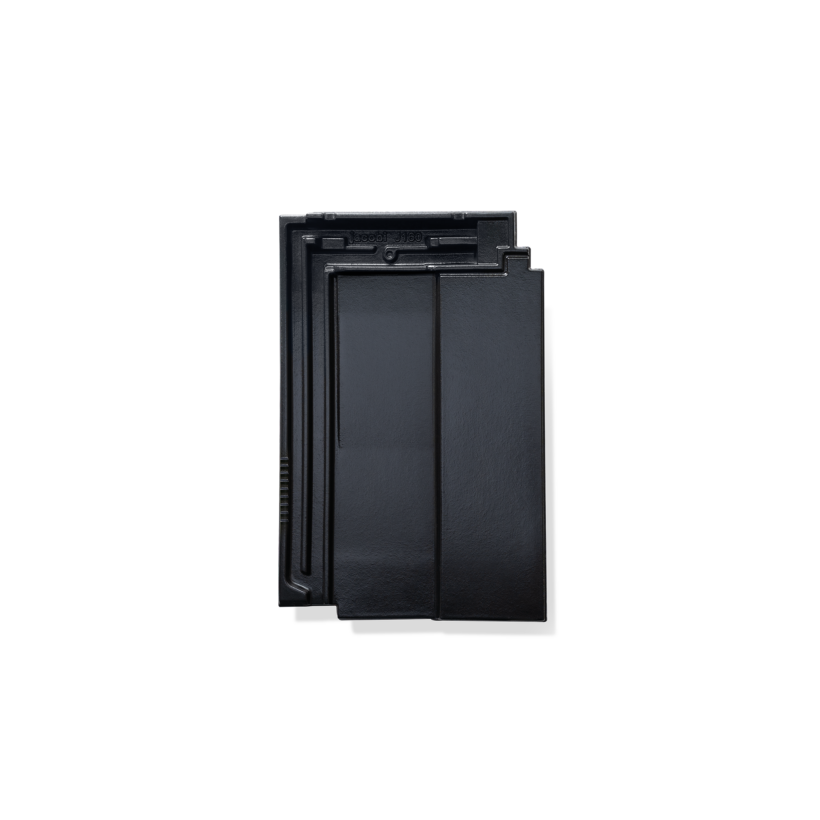

J160

Smooth tile

Dimensions

Natural red/engobed, fine engobed

Surface & Color

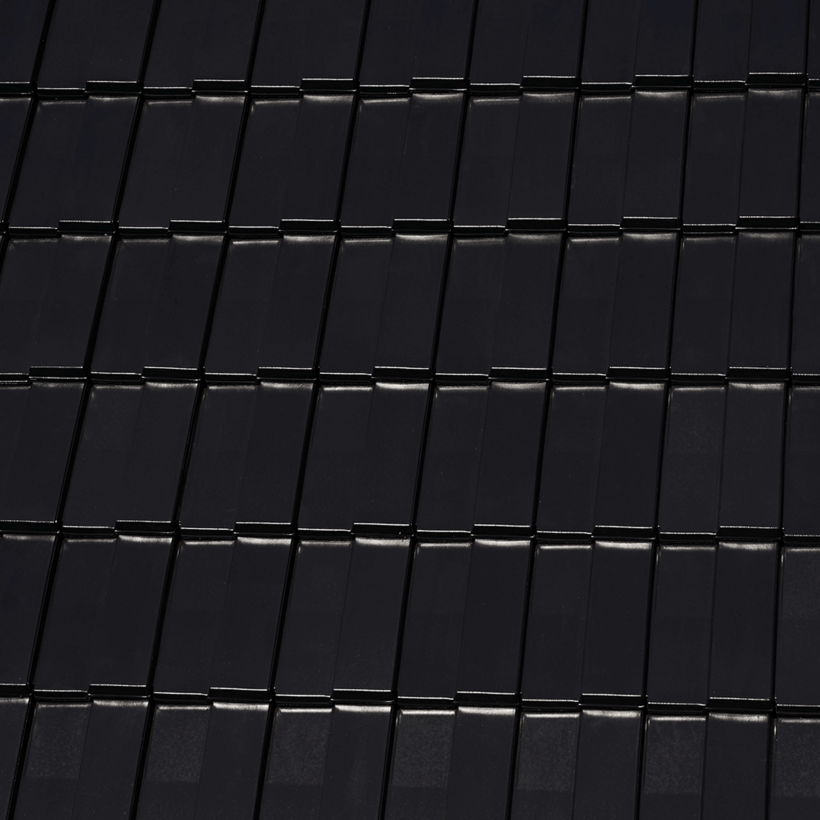

Selected surface/color: fine black

Natural red/engobed

Fine engobes

Order sample tiles

Are you looking for expert advice?
Contact

Can't find the variant you want?
Request individual tile

Overall dimension

29,0 x 44,5 cm

Cover length (CL)

33,4 - 36,4 cm

Cover width (CW)

23,4 cm

Required no. of units per m²

11,8 - 12,8

Weight per unit

ca. 4,3 kg

Recommended roof pitch

≥ 22°

Hagelklasse

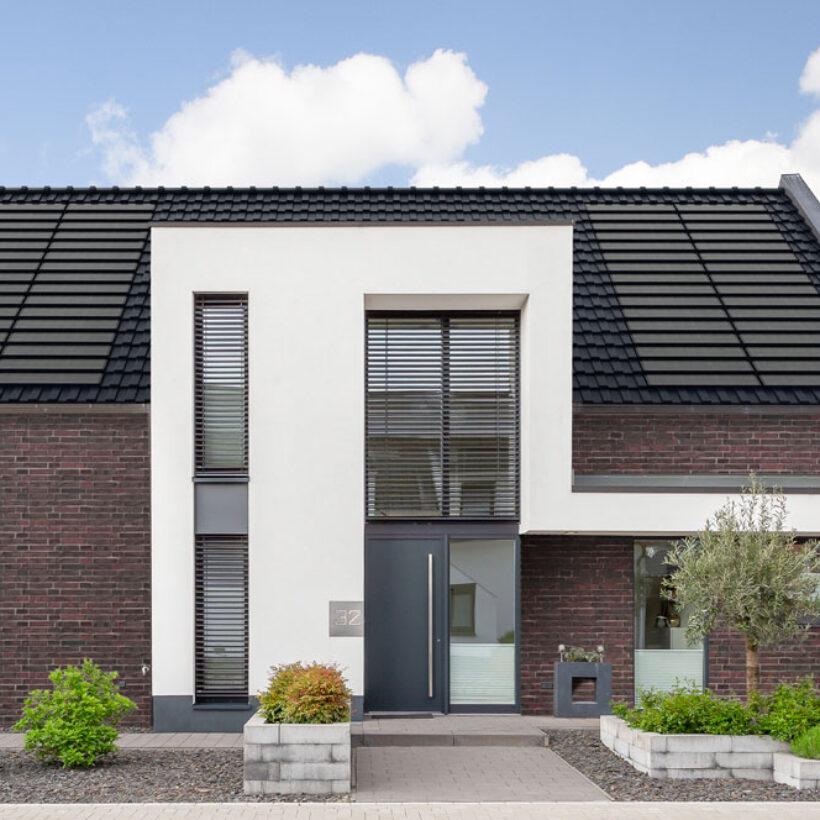

J160, the roof tile that was developed in Jacobi 160th anniversary year to stand out: straight and modern, architecturally sophisticated and for architects and builders who like the Bauhaus style. A new Jacobi brick that proves that we can’t just do whatever we want. Thanks to pronounced folds; our ceramic answer to ever flatter roof pitches.

Minimum roof pitch: can be covered up to 10° with increased additional measures in accordance with ZVDH regulations.

Dimensions

Dimensions
Dimensions	default
Overall dimension	29,0 x 44,5 cm
Cover length (CL)	33,4 - 36,4 cm
Cover width (CW)	23,4 cm
Required no. of units per m²	11,8 - 12,8
Weight per unit	ca. 4,3
Double beading pcs pro running meter	ca. 2,7
verge pcs. pro running meter	ca. 2,7
Packaging Unit	48
Piece/pallet	192
Recommended roof pitch	≥ 22°
	4

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile	roof pitch
Ridge tile	15°	20°	25°	30°	35°	40°	45°	50°	55°
F21	50	40	40	35	30	25	25	20	-
F1v	60	55	45	45	40	30	25	20	-
F6v	60	55	50	45	45	40	35	30	-
F9	50	50	45	40	35	30	30	20	-
F16	60	55	55	45	45	40	30	20	-

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile	roof pitch
Ridge tile	15°	20°	25°	30°	35°	40°	45°	50°	55°
F21	145	140	135	125	115	115	105	90	-
F1v	135	130	125	120	105	100	95	95	-
F6v	135	130	125	120	105	105	95	95	-
F9	110	105	100	95	85	80	70	70	-
F16	125	120	110	105	90	90	90	90	-

Lath spacing ridge (LAF) in mm

Lath spacing ridge (LAF) in mm
Ridge tile	roof pitch
Ridge tile	15°	20°	25°	30°	35°	40°	45°	50°	55°
J160	40	35	30	20	20	15	5	5	5

Ridge-batten distance FLA for ridge universal 90°

Ridge-batten distance FLA for ridge universal 90°
Ridge tile	roof pitch
Ridge tile	15°	20°	25°	30°	35°	40°	45°	50°	55°
J160	95	90	85	85	85	85	75	60	55

Minimum roof pitch: can be covered up to 10° with increased additional measures in accordance with ZVDH regulations.

Dimensions

Dimensions
Dimensions	default
Overall dimension	29,0 x 44,5 cm
Cover length (CL)	33,4 - 36,4 cm
Cover width (CW)	23,4 cm
Required no. of units per m²	11,8 - 12,8
Weight per unit	ca. 4,3
Double beading pcs pro running meter	ca. 2,7
verge pcs. pro running meter	ca. 2,7
Packaging Unit	48
Piece/pallet	192
Recommended roof pitch	≥ 22°
	4

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile	roof pitch
Ridge tile	15°	20°	25°	30°	35°	40°	45°	50°	55°
F21	50	40	40	35	30	25	25	20	-
F1v	60	55	45	45	40	30	25	20	-
F6v	60	55	50	45	45	40	35	30	-
F9	50	50	45	40	35	30	30	20	-
F16	60	55	55	45	45	40	30	20	-

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile	roof pitch
Ridge tile	15°	20°	25°	30°	35°	40°	45°	50°	55°
F21	145	140	135	125	115	115	105	90	-
F1v	135	130	125	120	105	100	95	95	-
F6v	135	130	125	120	105	105	95	95	-
F9	110	105	100	95	85	80	70	70	-
F16	125	120	110	105	90	90	90	90	-
