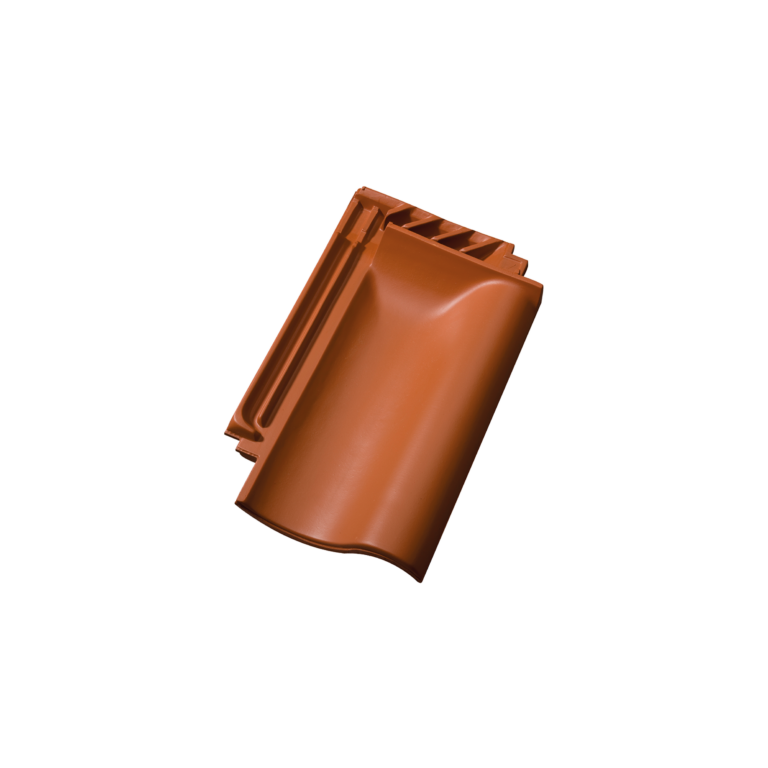

Ridge connection air tile Z5

Special shape tiles · FAL

Our Z5 ridge connection vent tile is the ideal solution for an all-ceramic roof.
In addition to a high-quality and durable roof finish, it ensures permanent rear ventilation on the roof and offers protection against rain penetration and high wind loads. The FAL is quick and easy to install. The elimination of the ridge tape also eliminates an additional work step.

Zubehör
Ceramic accessories
Number of available colors
20 Farben

Maße

Maße
Cover length 33,8 – 35,8 cm
Cover length CA 33 – 35 cm
Cover width 21,7 cm
Ventilation cross-section/tile 14 cm²
Ventilation cross-section/rm 130 cm²
Weight 4,5 kg
Unit requirement/rm 4,6
Recommended roof pitch ≥ 22°

Can be combined with the following roof tiles

  • Z5

    • Dachziegelfarbe naturrot
    • Dachziegelfarbe naturrot hell
    • Dachziegelfarbe naturrot dunkel
    • Dachziegelfarbe altrot

    20 Colors available

    Hohlfalzziegel Z5 in altrot
