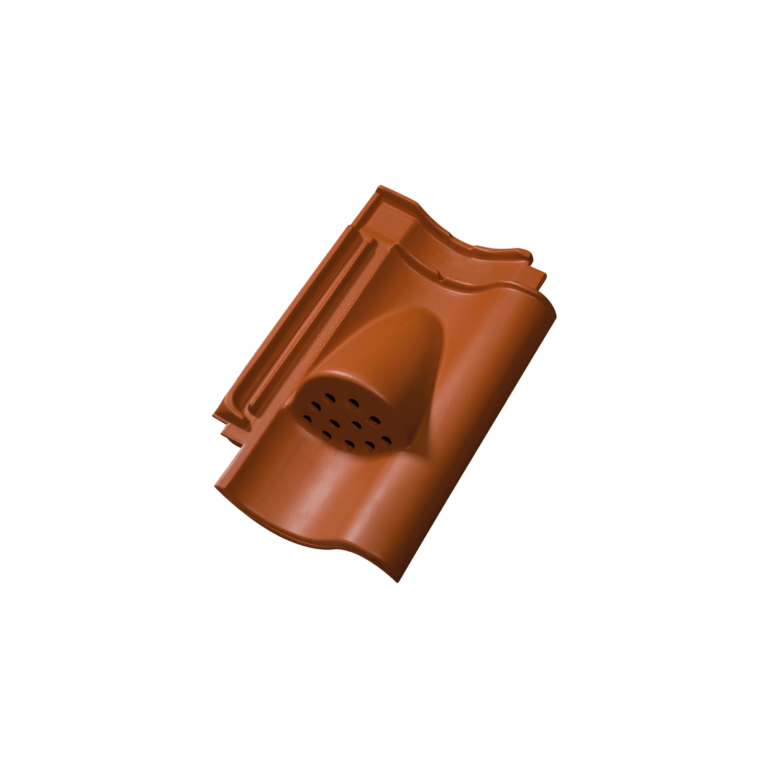

Ventilation tile Z5


Perfectly matching the curved Z5 hollow interlocking tile, the ventilation tile ensures professional rear ventilation of the roof. Its special shape allows air to flow in behind the roof covering, so that moisture is removed and condensation is prevented. This supports the longevity of the roof and promotes a healthy indoor climate.

Ceramic accessories
Number of available colors
20 Farben


Overall dimension 27,6 x 45 cm
Overall dimension CA 27,3 x 44,4 cm
Cover length 33,8 - 35,8 cm
Cover length CA 33 - 35 cm
Cover width 21,7 cm
Cover width CA 21,3 cm
Ventilation cross-section 14,2 cm²

Can be combined with the following roof tiles
