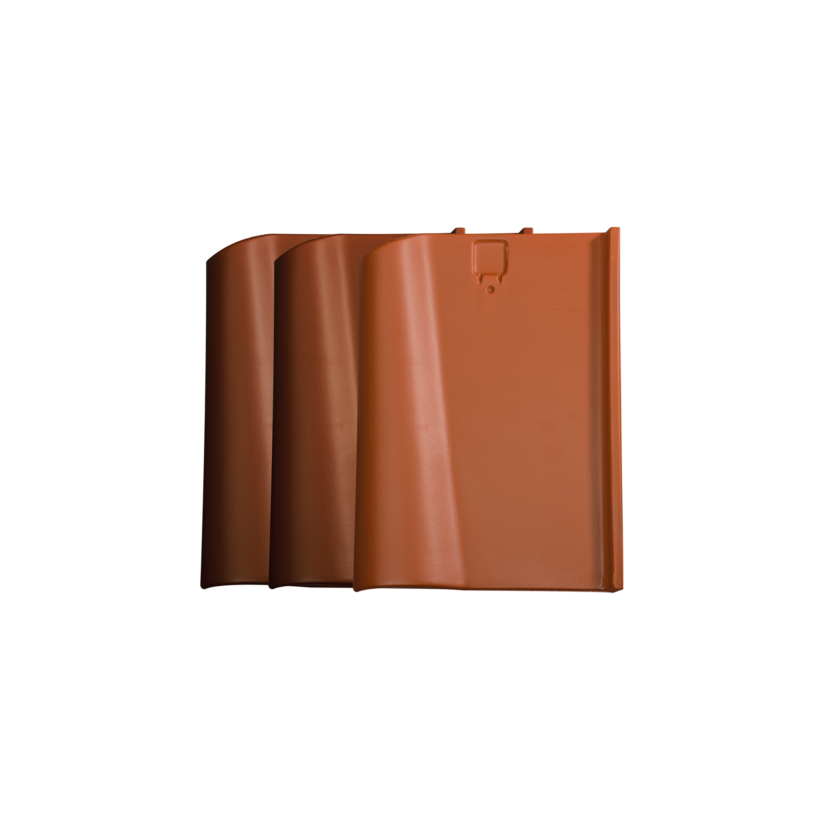

K1

Surface & Color

Selected surface/color: different red tones

Natural red/engobed

Special series

Are you looking for expert advice?
Contact

Can't find the variant you want?
Request individual tile

Overall dimension

26,5 x 35,0 cm

Cover length (CL)

25,5 - 27,0 cm

Cover width (CW)

23,5 cm

Required no. of units per m²

15,8 - 16,7

Weight per unit

ca. 2,8 kg

Recommended roof pitch

≥ 35°

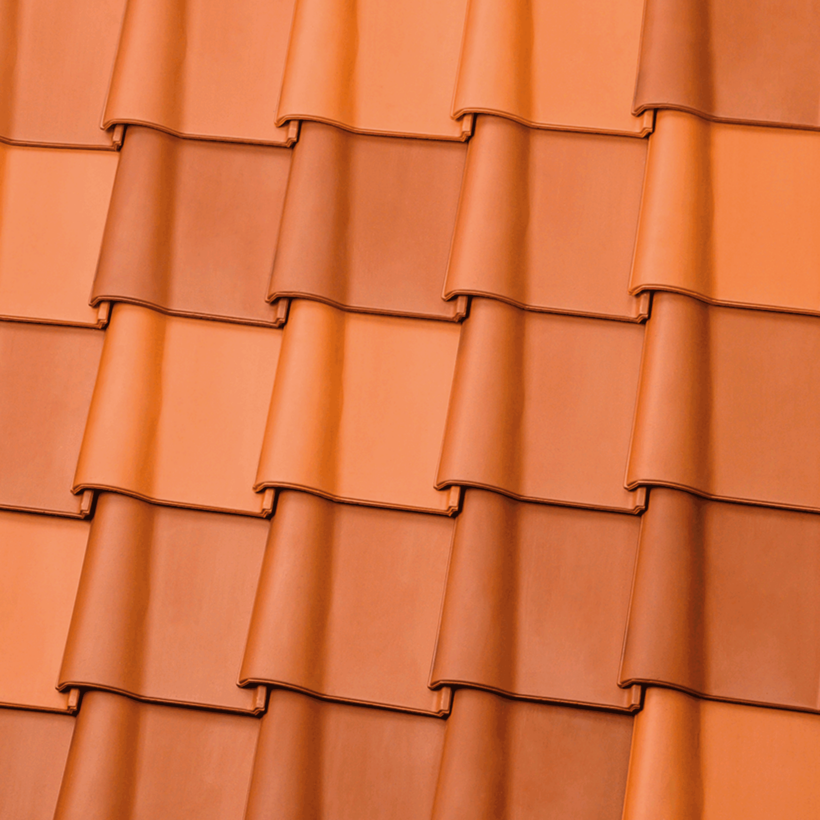

Flap tiles were used on roofs as far back as the 11th century. With the K1 you receive a resistant roof tile; their bag-shaped flap still enables them to be placed on top of each other in a variable form. The shape gives you a massive advantage when renovating a roof: Well-maintained roof bars and tiles can be reused in the new roof covering. The flap tile K1 with its bag-shaped, left fold can be found on many church roofs and is also available as a cushioned tile.

Dimensions

Dimensions
Dimensions default
Overall dimensions 26,5 x 35,0 cm
Cover length (CL) 25,5 - 27,0 cm (je nach Dachneigung)
Cover width (CW) 23,5 cm
Required no. of units per m² 15,8 - 16,7
Weight per unit ca. 2,8 kg
Double beading pcs. per rm ca. 3,8
Smallest packaging unit 72 St.
Pcs/pallet 288
Double beading pcs. per rm ≥ 35°

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 - 50 45 40 35 35 35 30 -
F1v - 65 65 55 55 50 50 50 -
F6v - 65 60 60 55 50 50 50 -
F9 - 50 45 40 35 35 35 30 -
F16 - 50 45 40 35 35 35 30 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 - 110 105 100 90 85 75 60 -
F1v - 120 115 115 100 90 85 70 -
F6v - 120 115 105 95 85 80 70 -
F9 - 90 90 85 70 70 60 60 -
F16 - 110 105 100 85 80 80 65 -

Lath spacing ridge (LAF) in mm

Lath spacing ridge (LAF) in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
K1 - - 35 35 30 20 5 5 -

Ridge-batten distance FLA for ridge universal 90°

Ridge-batten distance FLA for ridge universal 90°
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
K1 - - 105 105 105 95 90 80 -
Skizze mit Dachschnitt von Krempziegel K1
Example ridge
Double beading K1
Double beading

Dachziegel-Technik App

Mit unserer App Dachziegel Technik bleiben Sie immer auf dem neuesten Stand und erhalten alle wichtigen Informationen und technische Daten rund um unsere Produkte - auch offline!

Mehr über die App erfahren

Header für das kostenlose Werkzeug App Dachziegel Technik

Rechner für Schneeschutzsysteme

Unser Rechner für Schneeschutzsysteme wurde entwickelt, um Ihnen einen Überblick über die zu erwartenden Schneelasten zu geben und dient als Orientierungshilfe für die Schneesicherung Ihres Daches.

Zum Rechner für Schneeschutzsysteme

teaser-page--large

Flap tiles were used on roofs as far back as the 11th century. With the K1 you receive a resistant roof tile; their bag-shaped flap still enables them to be placed on top of each other in a variable form. The shape gives you a massive advantage when renovating a roof: Well-maintained roof bars and tiles can be reused in the new roof covering. The flap tile K1 with its bag-shaped, left fold can be found on many church roofs and is also available as a cushioned tile.

Dimensions

Dimensions
Dimensions default
Overall dimensions 26,5 x 35,0 cm
Cover length (CL) 25,5 - 27,0 cm (je nach Dachneigung)
Cover width (CW) 23,5 cm
Required no. of units per m² 15,8 - 16,7
Weight per unit ca. 2,8 kg
Double beading pcs. per rm ca. 3,8
Smallest packaging unit 72 St.
Pcs/pallet 288
Double beading pcs. per rm ≥ 35°

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 - 50 45 40 35 35 35 30 -
F1v - 65 65 55 55 50 50 50 -
F6v - 65 60 60 55 50 50 50 -
F9 - 50 45 40 35 35 35 30 -
F16 - 50 45 40 35 35 35 30 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 - 110 105 100 90 85 75 60 -
F1v - 120 115 115 100 90 85 70 -
F6v - 120 115 105 95 85 80 70 -
F9 - 90 90 85 70 70 60 60 -
F16 - 110 105 100 85 80 80 65 -

Lath spacing ridge (LAF) in mm

Lath spacing ridge (LAF) in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
K1 - - 35 35 30 20 5 5 -

Ridge-batten distance FLA for ridge universal 90°

Ridge-batten distance FLA for ridge universal 90°
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
K1 - - 105 105 105 95 90 80 -
Skizze mit Dachschnitt von Krempziegel K1
Example ridge
Double beading K1
Double beading

Dachziegel-Technik App

Mit unserer App Dachziegel Technik bleiben Sie immer auf dem neuesten Stand und erhalten alle wichtigen Informationen und technische Daten rund um unsere Produkte - auch offline!

Mehr über die App erfahren

Header für das kostenlose Werkzeug App Dachziegel Technik

Rechner für Schneeschutzsysteme

Unser Rechner für Schneeschutzsysteme wurde entwickelt, um Ihnen einen Überblick über die zu erwartenden Schneelasten zu geben und dient als Orientierungshilfe für die Schneesicherung Ihres Daches.

Zum Rechner für Schneeschutzsysteme

teaser-page--large

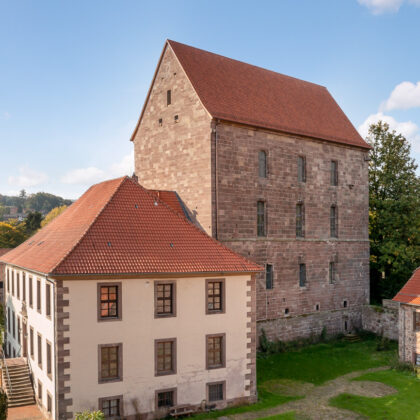

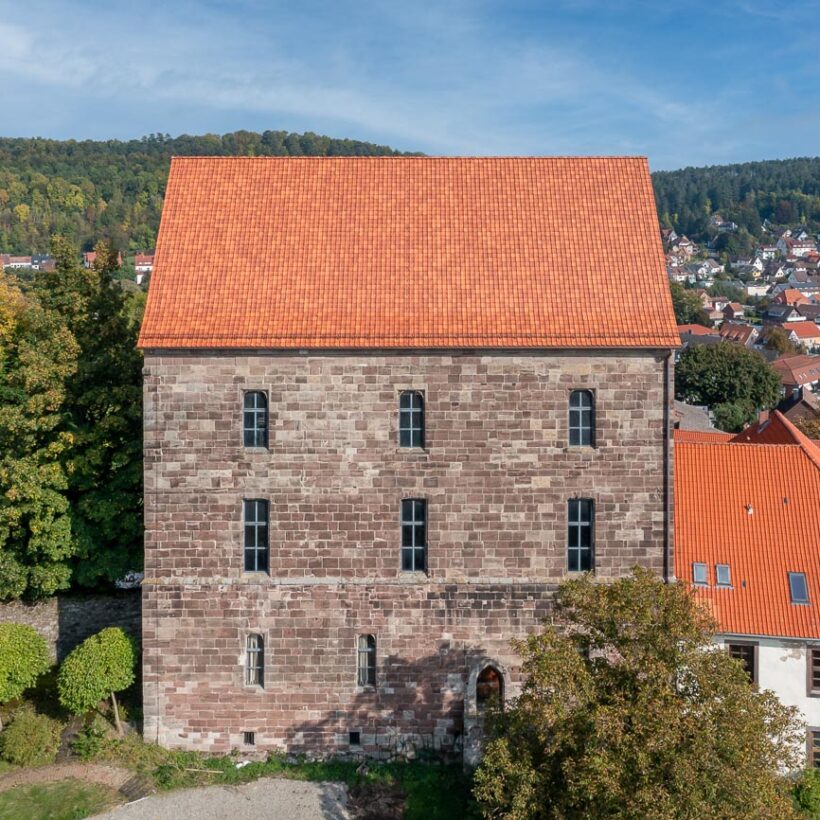

Our roof tiles on the roof
