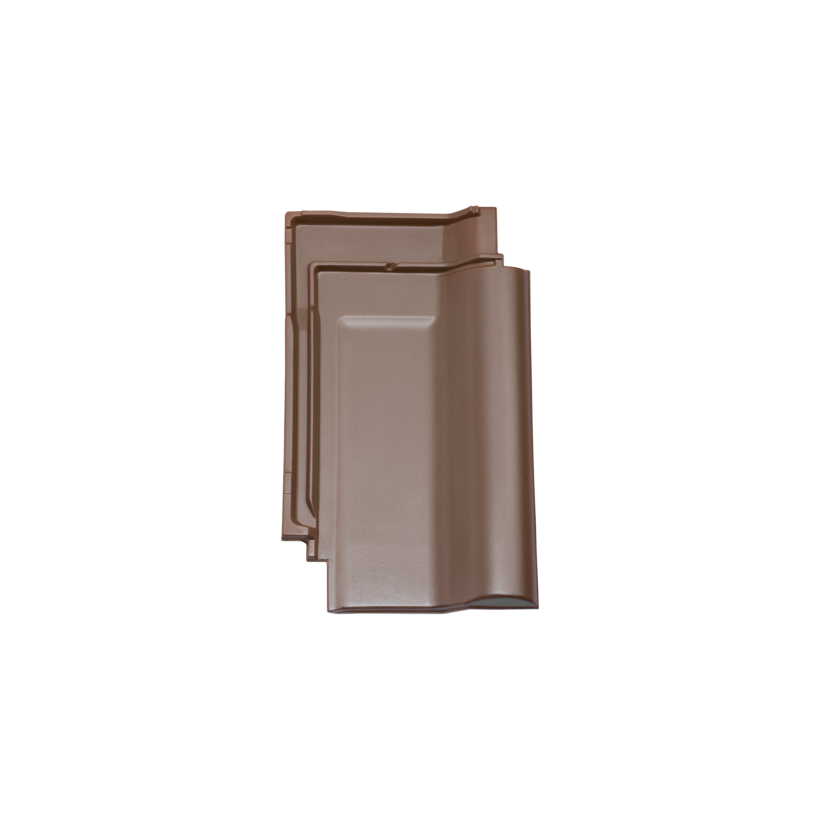

J13v

Surface & Color

Selected surface/color: dark brown

Natural red/engobed

Fine engobes

Are you looking for expert advice?
Contact

Can't find the variant you want?
Request individual tile

Overall dimension

27,0 x 44,5 cm

Cover length (CL)

32,6 - 35,6 cm

Cover width (CW)

21,3 cm

Required no. of units per m²

13,2 - 14,4

Weight per unit

ca. 3,6 kg

Recommended roof pitch

≥ 22°

When laying the flat J13v roof tile you achieve a striking look that is in demand in Germany as a result of the expressive, closed brim. With many different surfaces and colours, above all our high-quality glazes, you can fix premium roof tiles to your roof.

With its ability to slide by up to 30 millimetres, this gives architects, roofers and developers great freedom when planning new builds and renovation projects. A simple side groove bracket ensures the tile is completely wind-proof and the quadruple cover in the four-tile corner provides additional hold.

Dimensions

Dimensions
Dimensions Natural red - Fine engobesCollection Avantgarde
Overall dimension 27,0 x 44,5 cm26,3 x 43,5 cm
Cover length (CL) 32,6 - 35,6 cm31,8 - 34,8 cm
Cover length (CL) for perforated roof tiles 33,7 - 35,6 cm32,9 - 34,8 cm
Cover width (CW) 21,3 cm20,9 cm
Required no. of units per m² 13,2 - 14,413,7 - 15,0
Weight per unit ca. 3,6 kgca. 3,6 kg
FAL pcs pro running meter ca. 4,7ca. 4,8
Double beading pcs pro running meter ca. 2,8ca. 2,8
verge pcs. pro running meter ca. 2,8ca. 2,8
Packaging Unit 56 St.56 St.
Piece/pallet 224224
Recommended roof pitch ≥ 22°≥ 22°

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 40 40 75 65 60 55 50 45 -
F1v 45 45 40 35 30 25 60 60 -
F6v 55 45 40 35 30 25 20 20 -
F9 40 40 35 60 60 55 45 40 -
F16 55 50 45 40 35 35 65 65 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 120 115 90 90 85 80 75 70 -
F1v 145 140 130 125 120 115 95 85 -
F6v 140 135 130 120 115 110 105 100 -
F9 115 110 105 85 80 75 65 55 -
F16 130 120 110 105 100 95 80 70 -

Latt distance ridge LAF /* FAL in mm

Latt distance ridge LAF /* FAL in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F6v + FAL 70 65 65 55 50 45 35 - -
F9 + FAL 55 50 45 35 - - - - -
F16 + FAL 70 65 60 55 50 45 40 30 25

Ridge-batten distance FLA /* FAL in mm

Ridge-batten distance FLA /* FAL in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F6v + FAL 140 130 120 115 110 105 100 - -
F9 + FAL 115 105 95 90 - - - - -
F16 + FAL 125 120 115 105 100 95 90 80 75

Lath spacing ridge (LAF) in mm

Lath spacing ridge (LAF) in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
J13v 40 30 25 25 20 15 10 - -
J13v mit FAL 30 25 20 - - - - - -

Ridge-batten distance FLA for ridge universal 90°

Ridge-batten distance FLA for ridge universal 90°
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
J13v 115 105 100 95 90 85 85 - -
J13v mit FAL 120 110 95 - - - - - -
Skizze mit Dachschnitt von Flachdachziegel J13v
Example ridge
Verge J13v
Double beading
Double beading J13v
Verge
