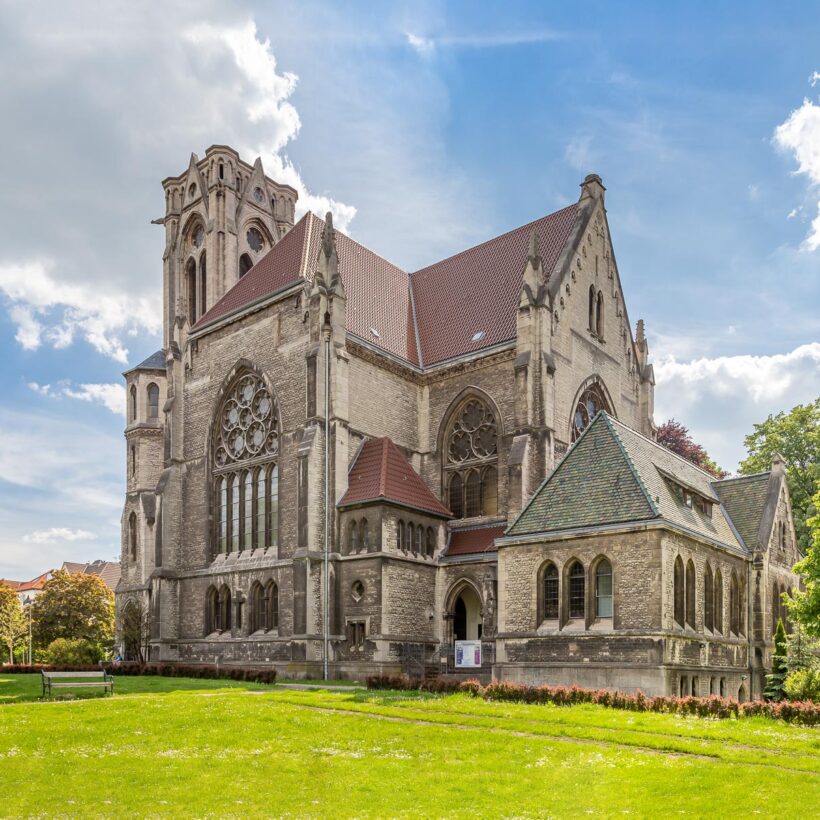

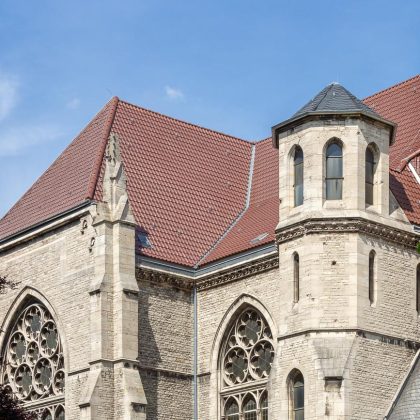

The W4v is a development of the W4, which has been tried and tested since the 1960s. The small-format roof tile, which imitates the style of famous tile maker Johann Wilhelm Ludowici (1896–1983), is extremely popular above all in southern Germany. The peculiarity of the W4v is that it offers you a sliding range of up to 15 millimetres, which makes the tile interesting for both renovation projects and new buildings. The small-format tile generates a beautiful line, in particular on small house roofs.
W4v
Dimensions
Surface & Color
Selected surface/color: copper brown
Natural red/engobed
Are you looking for expert advice?
Contact
Can't find the variant you want?
Request individual tile
Overall dimension
26,0 x 42,0 cm
Cover length (CL)
33,3 - 34,8 cm
Cover width (CW)
20,0 cm
Required no. of units per m²
14,4 - 15,0
Weight per unit
ca. 3,3 kg
Recommended roof pitch
≥ 22°
Dimensions
| Dimensions | default |
|---|---|
| Overall dimensions | 26,0 x 42,0 cm |
| Cover length (CL) | 33,3 - 34,8 cm |
| Cover width (CW) | 20,0 cm |
| Required no. of units per m² | 14,4 - 15,0 |
| Weight per unit | ca. 3,3 kg |
| FAL pcs per linear meter | ca. 5,0 |
| Double beading pcs per linear meter | ca. 2,9 |
| Packaging Unit | 64 St. |
| Piece/pallet | 256 |
| Recommended roof pitch | ≥ 22° |
Latt distance ridge LAF in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| cylindrical | 105 | 105 | 105 | 100 | 100 | 85 | 85 | 80 | - |
| conical | 70 | 70 | 65 | 65 | 50 | 50 | 40* | 40* | - |
| Tradition | 90 | 90 | 90 | 90 | 80 | 80 | 75 | 70 | - |
Ridge-batten distance FLA in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| cylindrical | 110 | 100 | 90 | 85 | 75 | 65 | 60 | 55 | - |
| conical | 100 | 100 | 95 | 90 | 90 | 85 | 70* | 70* | - |
| Tradition | 130 | 125 | 115 | 105 | 100 | 95 | 80 | 75 | - |
Latt distance ridge LAF /* FAL in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| cylindrical + FAL | 50 | 50 | 40 | 40 | 40 | 40 | 40 | 30 | 30 |
Ridge-batten distance FLA /* FAL in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| cylindrical + FAL | 105 | 100 | 90 | 80 | 70 | 60 | 50 | 40 | 40 |
The W4v is a development of the W4, which has been tried and tested since the 1960s. The small-format roof tile, which imitates the style of famous tile maker Johann Wilhelm Ludowici (1896–1983), is extremely popular above all in southern Germany. The peculiarity of the W4v is that it offers you a sliding range of up to 15 millimetres, which makes the tile interesting for both renovation projects and new buildings. The small-format tile generates a beautiful line, in particular on small house roofs.
Dimensions
| Dimensions | default |
|---|---|
| Overall dimensions | 26,0 x 42,0 cm |
| Cover length (CL) | 33,3 - 34,8 cm |
| Cover width (CW) | 20,0 cm |
| Required no. of units per m² | 14,4 - 15,0 |
| Weight per unit | ca. 3,3 kg |
| FAL pcs per linear meter | ca. 5,0 |
| Double beading pcs per linear meter | ca. 2,9 |
| Packaging Unit | 64 St. |
| Piece/pallet | 256 |
| Recommended roof pitch | ≥ 22° |
Latt distance ridge LAF in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| cylindrical | 105 | 105 | 105 | 100 | 100 | 85 | 85 | 80 | - |
| conical | 70 | 70 | 65 | 65 | 50 | 50 | 40* | 40* | - |
| Tradition | 90 | 90 | 90 | 90 | 80 | 80 | 75 | 70 | - |
Ridge-batten distance FLA in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| cylindrical | 110 | 100 | 90 | 85 | 75 | 65 | 60 | 55 | - |
| conical | 100 | 100 | 95 | 90 | 90 | 85 | 70* | 70* | - |
| Tradition | 130 | 125 | 115 | 105 | 100 | 95 | 80 | 75 | - |
Latt distance ridge LAF /* FAL in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| cylindrical + FAL | 50 | 50 | 40 | 40 | 40 | 40 | 40 | 30 | 30 |
Ridge-batten distance FLA /* FAL in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| cylindrical + FAL | 105 | 100 | 90 | 80 | 70 | 60 | 50 | 40 | 40 |
