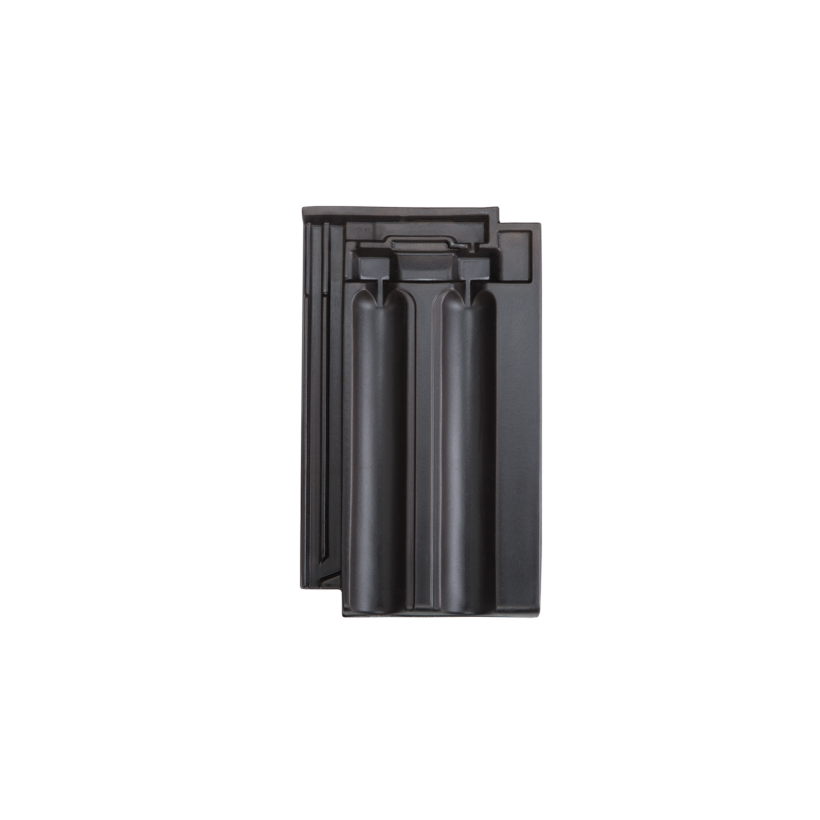

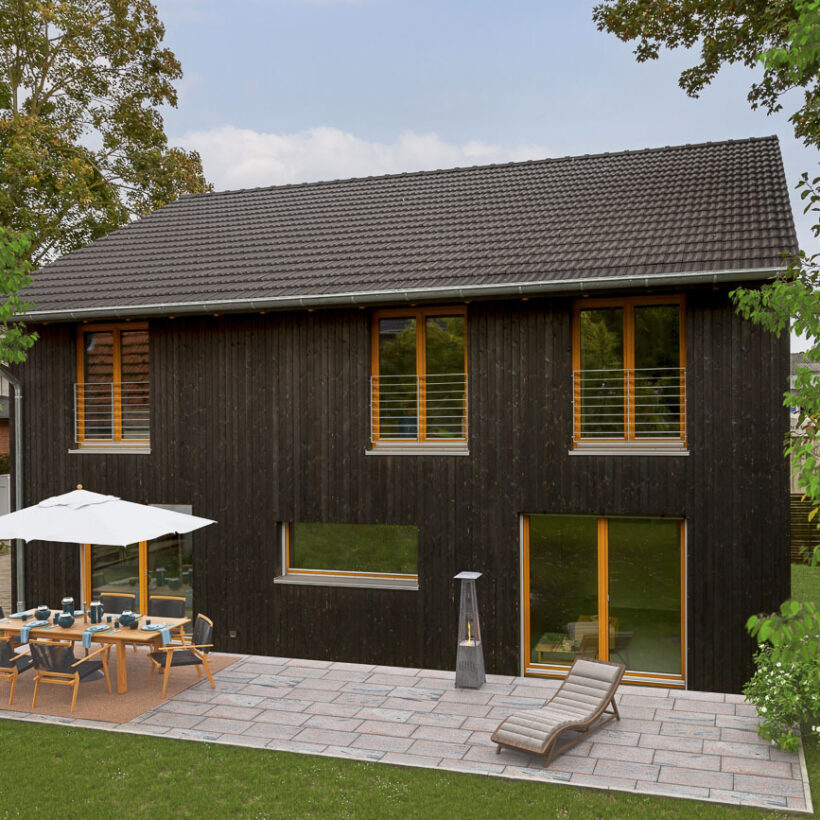

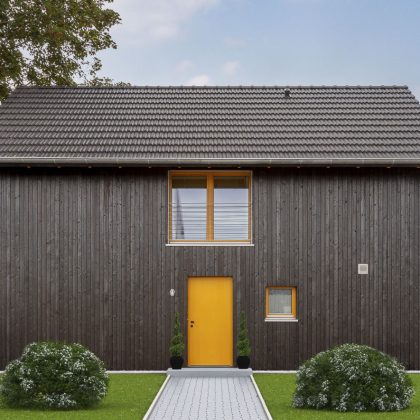

Z2

Surface & Color

Selected surface/color: night grey vapour coated

Natural red/engobed

Special series

Are you looking for expert advice?
Contact

Can't find the variant you want?
Request individual tile

Overall dimension

25,0 x 42,3 cm

Cover length (CL)

34,5 - 35,5 cm

Cover width (CW)

20,5 cm

Required no. of units per m²

13,7 - 14,1

Weight per unit

ca. 3,8 kg

Recommended roof pitch

≥ 25°

Introduced in 1880, the double recess clay tile was quickly distributed throughout Germany. Even over 100 years ago, numerous multiple family dwellings in Berlin were covered with the Z2 interlocking tile and even now millions of “Berlin tiles” protect the capital city’s citizens from wind and weather. With its tried and trusted shape, high stability and precise sizing, you can cover roofs that look modern on an ongoing basis not only today but also in the future.

Dimensions

Dimensions
Dimensions default
Overall dimensions 25,0 x 42,3 cm
Cover length (CL) 34,5 - 35,5 cm
Cover width (CW) 20,5 cm
Required no. of units per m² 13,7 - 14,1
Weight per unit ca. 3,8 kg
Recommended roof pitch ≥ 25°

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 60 50 45 45 40 40 40 30 -
F1v 60 60 55 50 45 40 30 30 -
F6v 75 75 70 70 65 65 60 60 -
F9 75 60 60 55 50 45 35 30 -
F16 75 70 70 65 60 55 50 50 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 105 100 95 85 80 70 60 55 -
F1v 130 125 120 110 100 90 80 70 -
F6v 130 120 115 100 95 90 80 70 -
F9 95 90 80 75 65 55 55 55 -
F16 115 105 100 95 80 70 60 55 -

Lath spacing ridge (LAF) in mm

Lath spacing ridge (LAF) in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
Z2 50 45 35 35 35 30 15 5 5

Ridge-batten distance FLA for ridge universal 90°

Ridge-batten distance FLA for ridge universal 90°
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
Z2 95 95 85 80 75 75 65
Skizze mit Dachschnitt von Doppelmuldenfalzziegel Z2
Interlocking tile with double trough Z2: Example ridge
Verge
Interlocking tile with double trough Z2: Verge
Double beading
Interlocking tile with double trough Z2: Double beading
