The smallest plain tile from Jacobi, the tower plaintile, is particularly suitable for covering small roof areas such as towers, canopies or bay windows. Thanks to its small format, it is easy to install. It is available in three colors.

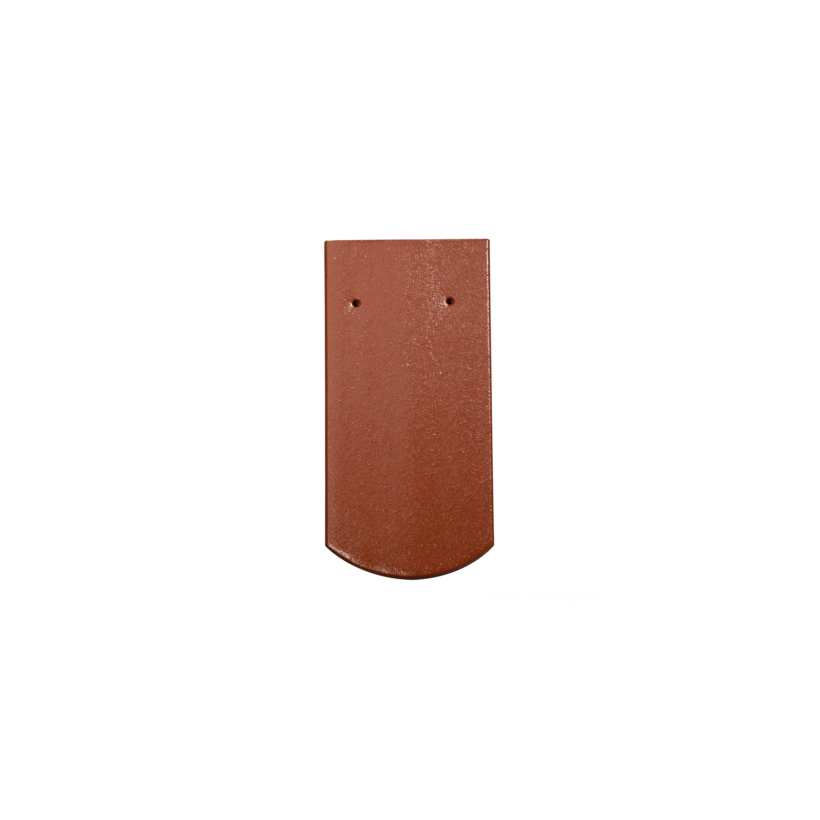

Tower Plain tile 14,2×28,5
Plain Tile
Dimensions
Surface & Color
Selected surface/color: red brown
Natural red/engobed
Fine engobes
Are you looking for expert advice?
Contact
Can't find the variant you want?
Request individual tile
Overall dimension
14,2 x 28,5 cm
Cover length (CL)
11,0 - 12,0 cm
Required no. of units per m²
62 - 79
Weight per unit
ca. 1 kg
Recommended roof pitch
≥ 30°
Dimensions
| Dimensions | default |
|---|---|
| Overall dimensions | 14,2 x 28,5 cm |
| Cover length (CL) | 11,0 - 12,0 cm |
| Cover width (CW) | 62 - 79 |
| Required no. of units per m² | ca. 1 kg |
| Weight per unit | 12 mm |
| ≥ 30° |
Latt distance ridge LAF in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| 125 | 120 | 105 | 115 | 105 | 100 | 90 | 95 | - | |
| 100 | 100 | 100 | 90 | 90 | 90 | 90 | 90 | - | |
| 85 | 85 | 75 | 75 | 65 | 65 | 60 | 60 | - | |
Ridge-batten distance FLA in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| 95 | 95 | 85 | 80 | 70 | 60 | 65 | 50 | - | |
| 90 | 90 | 80 | 80 | 70 | 65 | 60 | 60 | - | |
| 85 | 85 | 80 | 80 | 75 | 75 | 65 | 65 | - | |
The smallest plain tile from Jacobi, the tower plaintile, is particularly suitable for covering small roof areas such as towers, canopies or bay windows. Thanks to its small format, it is easy to install. It is available in three colors.
Dimensions
| Dimensions | default |
|---|---|
| Overall dimensions | 14,2 x 28,5 cm |
| Cover length (CL) | 11,0 - 12,0 cm |
| Cover width (CW) | 62 - 79 |
| Required no. of units per m² | ca. 1 kg |
| Weight per unit | 12 mm |
| ≥ 30° |
Latt distance ridge LAF in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| 125 | 120 | 105 | 115 | 105 | 100 | 90 | 95 | - | |
| 100 | 100 | 100 | 90 | 90 | 90 | 90 | 90 | - | |
| 85 | 85 | 75 | 75 | 65 | 65 | 60 | 60 | - | |
Ridge-batten distance FLA in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| 95 | 95 | 85 | 80 | 70 | 60 | 65 | 50 | - | |
| 90 | 90 | 80 | 80 | 70 | 65 | 60 | 60 | - | |
| 85 | 85 | 80 | 80 | 75 | 75 | 65 | 65 | - | |
