The tegula is our roof tile with maximum height adjustability. It can slide by up to 80 millimetres. Its double side and base fold will protect any property reliably for decades. The straight lines and varied play between light and dark make the WALTHER tegula a tile that perfectly matches modern architecture. With traditional, light and also popular dark tones, you can decorate any contemporary roof.
WALTHER-tegula
Dimensions
Surface & Color

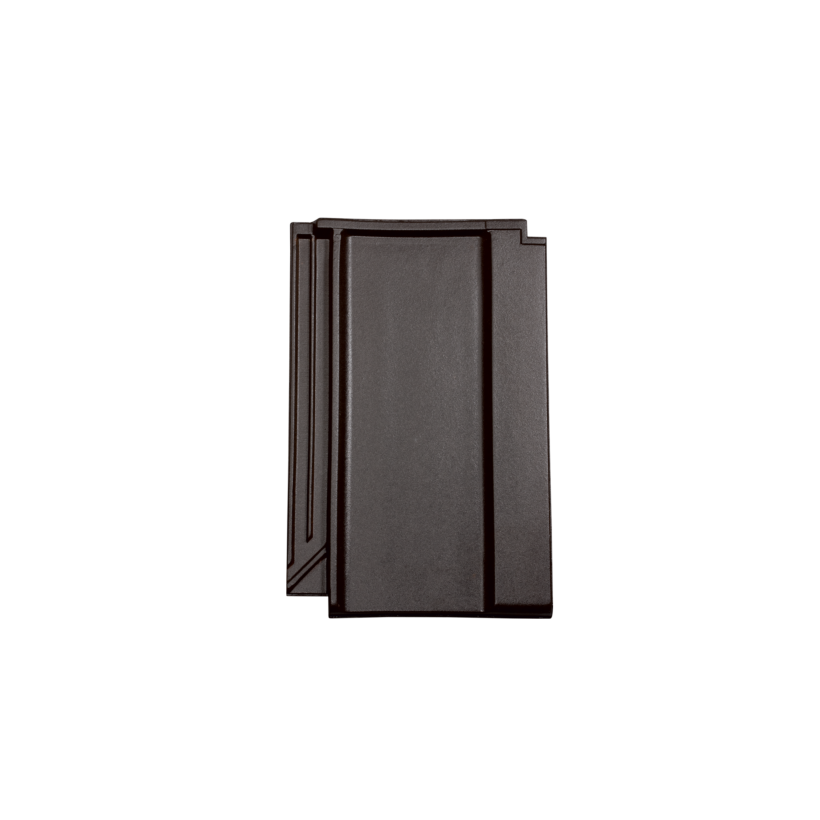

Selected surface/color: velvetblack
Natural red/engobed
Fine engobes
Are you looking for expert advice?
Contact
Can't find the variant you want?
Request individual tile
Overall dimension
27,0 x 42,0 cm
Cover length (CL)
25,0 - 35,0 cm
Cover width (CW)
23,1 cm
Required no. of units per m²
12,4 - 17,3
Weight per unit
ca. 3,7 kg
Recommended roof pitch
≥ 30°
Dimensions
| Dimensions | default |
|---|---|
| Overall dimensions | 27,0 x 42,0 cm |
| Cover length (CL) with verge | 32,5 - 35,0 cm |
| CL working on verge | 27,0 - 32,5 cm |
| CL without verge | 25,0 - 35,0 cm |
| Cover width (CW) | 23,1 cm |
| Required no. of units per m² | 12,4 - 17,3 |
| Weight per unit | ca. 3,7 kg |
| Double beading pcs. per rm | ca. 2,9 |
| Verge pcs. per rm | ca. 2,9 |
| Smallest packaging unit | 64 St. |
| Pcs/pallet | 256 |
| Recommended roof pitch | ≥ 30° |
Latt distance ridge LAF in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| WALTHER-tegula | - | 55 | 50 | 50 | 45 | 45 | 40 | 40 | - |
Ridge-batten distance FLA in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| WALTHER-tegula | - | 115 | 105 | 100 | 95 | 85 | 75 | 65 | - |
The tegula is our roof tile with maximum height adjustability. It can slide by up to 80 millimetres. Its double side and base fold will protect any property reliably for decades. The straight lines and varied play between light and dark make the WALTHER tegula a tile that perfectly matches modern architecture. With traditional, light and also popular dark tones, you can decorate any contemporary roof.
Dimensions
| Dimensions | default |
|---|---|
| Overall dimensions | 27,0 x 42,0 cm |
| Cover length (CL) with verge | 32,5 - 35,0 cm |
| CL working on verge | 27,0 - 32,5 cm |
| CL without verge | 25,0 - 35,0 cm |
| Cover width (CW) | 23,1 cm |
| Required no. of units per m² | 12,4 - 17,3 |
| Weight per unit | ca. 3,7 kg |
| Double beading pcs. per rm | ca. 2,9 |
| Verge pcs. per rm | ca. 2,9 |
| Smallest packaging unit | 64 St. |
| Pcs/pallet | 256 |
| Recommended roof pitch | ≥ 30° |
Latt distance ridge LAF in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| WALTHER-tegula | - | 55 | 50 | 50 | 45 | 45 | 40 | 40 | - |
Ridge-batten distance FLA in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| WALTHER-tegula | - | 115 | 105 | 100 | 95 | 85 | 75 | 65 | - |
Do you have your own ideas? Please feel free to contact us
For individual advice, you have the opportunity to tell us your wishes directly via vertrieb@dachziegel.de or using the Contact form.
