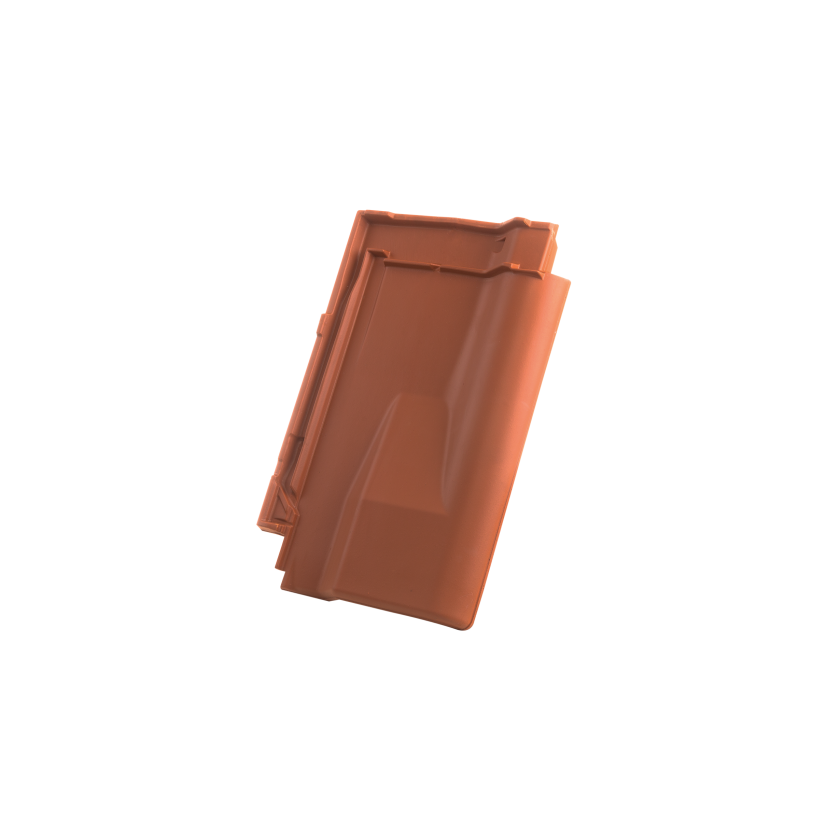

Ventilation tile J11v


Our ventilation tile for the J11v is a perfect match for the popular J11v flat roof tile. It is used for rear ventilation of the roof. Thanks to its special shape, it allows air to flow in behind the roof covering so that moisture can be removed from the inside of the roof. This prevents condensation, ensures the longevity of the roof and promotes a healthy indoor climate.

Ceramic accessories
Number of available colors
17 Farben


Overall dimension 44,5 x 30,4 cm
Overall dimension CA 44 x 29,1 cm
Cover length 33,3 - 36,5 cm
Cover length CA 32,8 - 36 cm
Cover width 24,6 cm
Cover width CA 23,6 cm
Ventilation cross-section 25,9 cm²
Ventilation cross-section CA 24,6 cm²

Can be combined with the following roof tiles
