Z5

Interlocking tile

Surface & Color

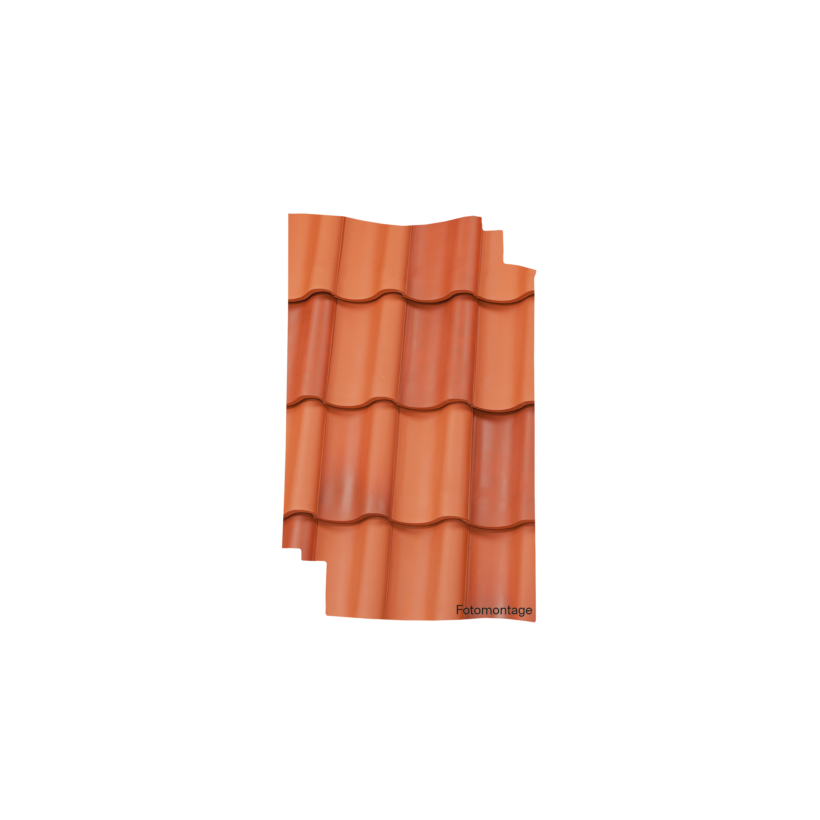

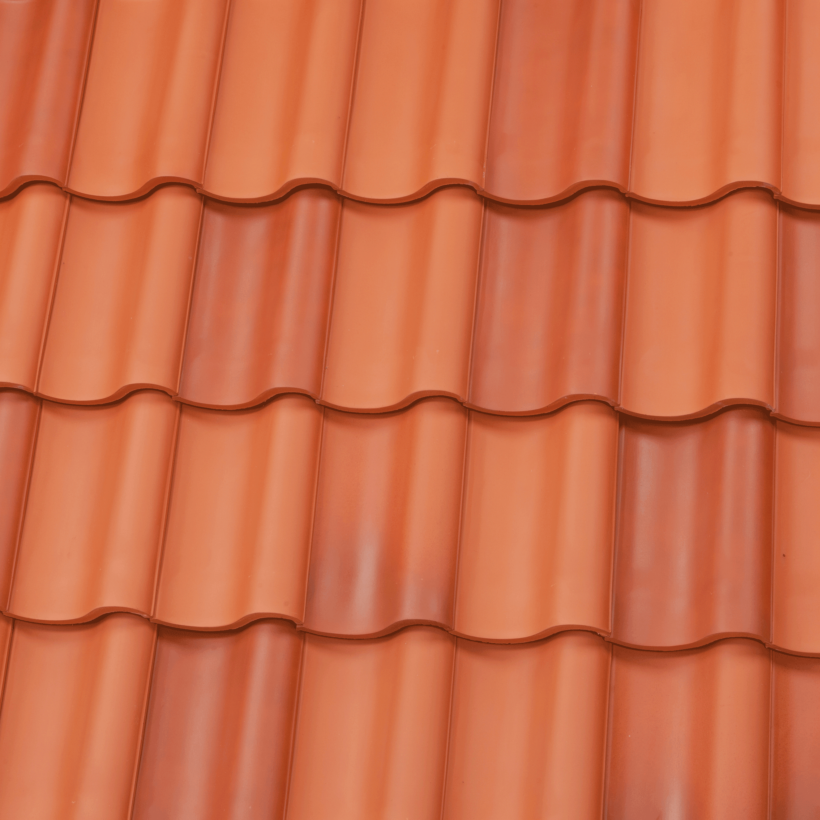

Selected surface/color: salt-fired (Frisian)

Natural red/engobed

Special series

Are you looking for expert advice?
Contact person/ dealer directory

Can't find the variant you want?
Request individual tile

Overall dimension

27,6 x 45,0 cm

Cover length (CL)

33,8 - 35,8 cm

Cover width (CW)

21,7 cm

Required no. of units per m²

12,9 - 13,6

Weight per unit

ca. 4,0 kg

Recommended roof pitch

≥ 22°

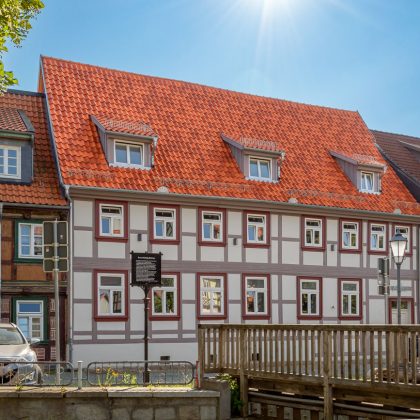

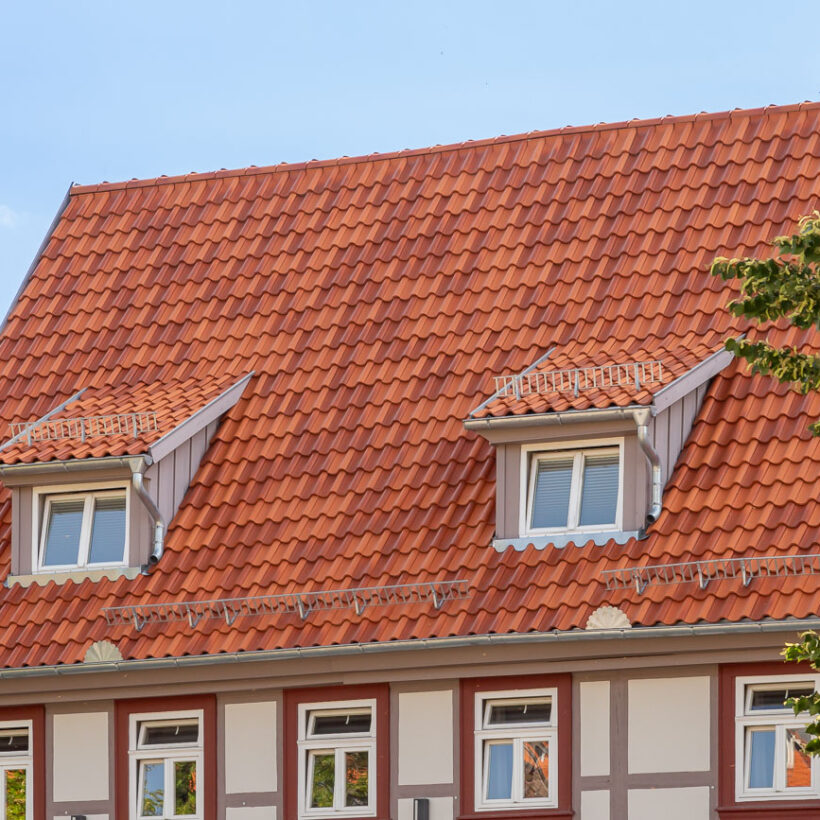

Above all the Z5 is a popular, classical interlocking pantile especially in northern Germany. No other Jacobi-Walther roof tiles are available to you in such a wide range of colours and finishes. Since its introduction in 1920, we have consistently developed the premium-quality, long-lasting interlocking pantile and optimised it for use on your roof.

As a result of its curved shape and the perfect ends on corners, edges and surfaces, the top-quality interlocking pantile is ideal for draining water and withstands any weather situation. With the straight cut design, you get an aligned look that can be used for listed buildings and others.

Dimensions

Dimensions
Dimensions Natural red - Fine engobesCollection Avantgarde
Overall dimensions 27,6 x 45,0 cm 27,3 x 44,4 cm
Cover length (CL) 33,8 - 35,8 cm 33,0 - 35,0 cm
Cover width (CW) 21,7 cm 21,3 cm
Required no. of units per m² 12,9 - 13,6 13,4 - 14,1
Weight per unit ca. 4,0 kg ca. 4,0 kg
FAL pcs pro running meter ca. 4,6 ca. 4,7
Double beading pcs pro running meter ca. 2,8ca. 2,9
Verge pcs. pro running meter ca. 2,8ca. 2,9
Packaging Unit 56 St. 56 St.
Piece/pallet 224224
Recommended roof pitch ≥ 22°≥ 22°

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 80 75 65 55 55 50 45 - -
F1v 90 90 80 75 65 65 60 55 -
F6v 100 90 85 80 75 70 65 55 -
F9 80 75 75 65 55 50 45 45 -
F16 95 85 80 75 70 65 60 60 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 115 110 105 95 90 85 80 - -
F1v 145 135 125 115 110 105 100 90 -
F6v 140 135 125 115 110 105 95 90 -
F9 110 105 100 95 85 80 75 70 -
F16 130 120 110 105 100 95 90 80 -

Latt distance ridge LAF /* FAL in mm

Latt distance ridge LAF /* FAL in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F6v + FAL 100 90 90 80 75 70 60 50 -
F9 + FAL 90 80 75 65 55 55 45 45 -
F16 + FAL 100 95 90 85 75 70 65 55 -

Ridge-batten distance FLA /* FAL in mm

Ridge-batten distance FLA /* FAL in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F6v + FAL 145 140 125 120 115 105 95 05 -
F9 + FAL 100 105 95 90 85 75 65 60 -
F16 + FAL 120 115 110 100 95 80 80 80 -

Lath spacing ridge (LAF) in mm

Lath spacing ridge (LAF) in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
Z5 70 55 45 35 30 15 5 - -
Z5 mit FAL 40 30 20 15 10 - - - -

Ridge-batten distance FLA for ridge universal 90°

Ridge-batten distance FLA for ridge universal 90°
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
Z5 110 105 100 100 100 100 95 - -
Z5 mit FAL 150 145 135 130 120 - - - -
Example ridge
Example ridge
Verge Z5
Verge
Double beading Z5
Double beading

Above all the Z5 is a popular, classical interlocking pantile especially in northern Germany. No other Jacobi-Walther roof tiles are available to you in such a wide range of colours and finishes. Since its introduction in 1920, we have consistently developed the premium-quality, long-lasting interlocking pantile and optimised it for use on your roof.

As a result of its curved shape and the perfect ends on corners, edges and surfaces, the top-quality interlocking pantile is ideal for draining water and withstands any weather situation. With the straight cut design, you get an aligned look that can be used for listed buildings and others.

Dimensions

Dimensions
Dimensions Natural red - Fine engobesCollection Avantgarde
Overall dimensions 27,6 x 45,0 cm 27,3 x 44,4 cm
Cover length (CL) 33,8 - 35,8 cm 33,0 - 35,0 cm
Cover width (CW) 21,7 cm 21,3 cm
Required no. of units per m² 12,9 - 13,6 13,4 - 14,1
Weight per unit ca. 4,0 kg ca. 4,0 kg
FAL pcs pro running meter ca. 4,6 ca. 4,7
Double beading pcs pro running meter ca. 2,8ca. 2,9
Verge pcs. pro running meter ca. 2,8ca. 2,9
Packaging Unit 56 St. 56 St.
Piece/pallet 224224
Recommended roof pitch ≥ 22°≥ 22°

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 80 75 65 55 55 50 45 - -
F1v 90 90 80 75 65 65 60 55 -
F6v 100 90 85 80 75 70 65 55 -
F9 80 75 75 65 55 50 45 45 -
F16 95 85 80 75 70 65 60 60 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 115 110 105 95 90 85 80 - -
F1v 145 135 125 115 110 105 100 90 -
F6v 140 135 125 115 110 105 95 90 -
F9 110 105 100 95 85 80 75 70 -
F16 130 120 110 105 100 95 90 80 -

Latt distance ridge LAF /* FAL in mm

Latt distance ridge LAF /* FAL in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F6v + FAL 100 90 90 80 75 70 60 50 -
F9 + FAL 90 80 75 65 55 55 45 45 -
F16 + FAL 100 95 90 85 75 70 65 55 -

Ridge-batten distance FLA /* FAL in mm

Ridge-batten distance FLA /* FAL in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F6v + FAL 145 140 125 120 115 105 95 05 -
F9 + FAL 100 105 95 90 85 75 65 60 -
F16 + FAL 120 115 110 100 95 80 80 80 -

Lath spacing ridge (LAF) in mm

Lath spacing ridge (LAF) in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
Z5 70 55 45 35 30 15 5 - -
Z5 mit FAL 40 30 20 15 10 - - - -

Ridge-batten distance FLA for ridge universal 90°

Ridge-batten distance FLA for ridge universal 90°
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
Z5 110 105 100 100 100 100 95 - -
Z5 mit FAL 150 145 135 130 120 - - - -
Example ridge
Example ridge
Verge Z5
Verge
Double beading Z5
Double beading
