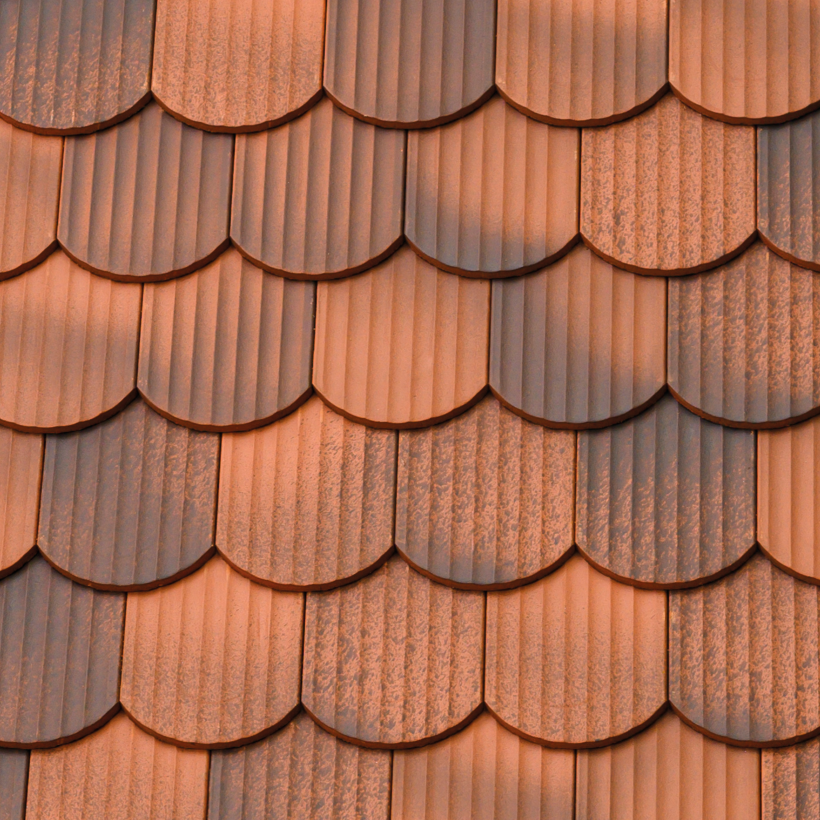

Whether as a round cut or a hexagon – our waved plain tile in the 17×38 format impresses with its wavy structure. It is available in different color variants and is therefore equally suitable for new buildings and historical properties.

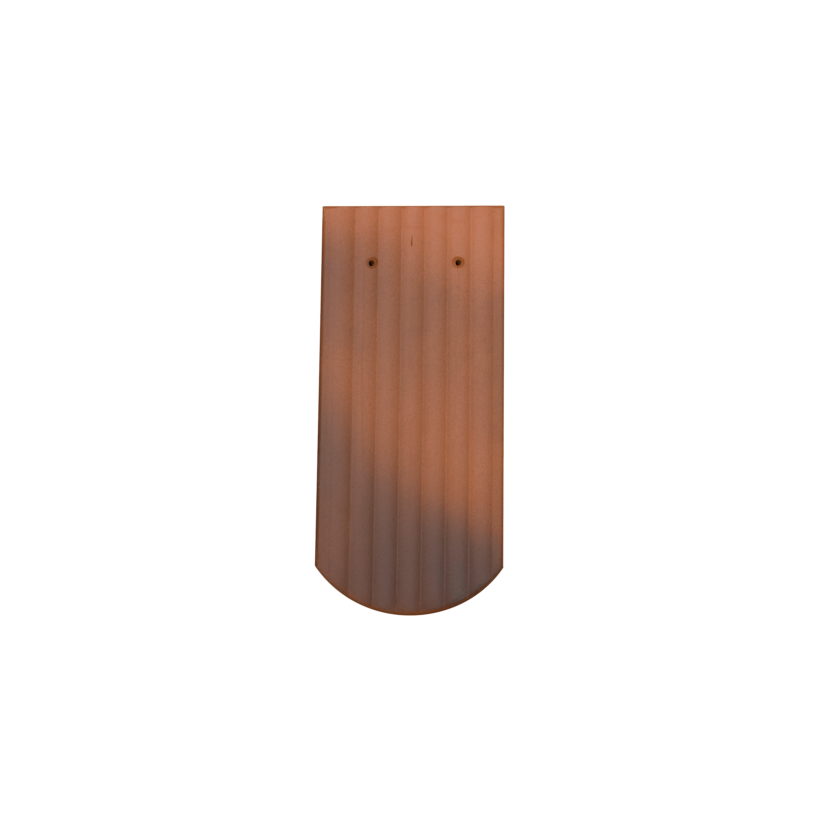

Waved Plain tile17x38
Plain Tile
Dimensions
Surface & Color
Selected surface/color: flamed
Natural red/engobed
Are you looking for expert advice?
Contact
Can't find the variant you want?
Request individual tile
Overall dimension
17,0 x 38,0 cm
Cover length (CL)
15,0 - 16,0 cm (DD)
Cover length (CL)
30,0 - 32,0 cm (KD)
Required no. of units per m²
36 - 41
Weight per unit
ca. 19 kg / ca. 2,2 kg
Recommended roof pitch
variiert mit Lattmaßen
Dimensions
| Dimensions | default |
|---|---|
| 17,0 x 38,0 cm | |
| 15,0 - 16,0 cm | |
| 30,0 - 32,0 cm | |
| 36 - 41 | |
| ca. 1,9 kg | |
| ca. 2,2 kg | |
| ca. 14 mm | |
| ca. 18mm | |
| variiert mit Lattmaßen |
Latt distance ridge LAF in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| 100 | 100 | 100 | 90 | 90 | 90 | 90 | 90 | - | |
| 85 | 85 | 75 | 75 | 65 | 65 | 60 | 60 | - | |
Ridge-batten distance FLA in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| 90 | 90 | 80 | 80 | 70 | 65 | 60 | 60 | - | |
| 85 | 85 | 80 | 80 | 75 | 75 | 65 | 65 | - | |
Whether as a round cut or a hexagon – our waved plain tile in the 17×38 format impresses with its wavy structure. It is available in different color variants and is therefore equally suitable for new buildings and historical properties.
Dimensions
| Dimensions | default |
|---|---|
| 17,0 x 38,0 cm | |
| 15,0 - 16,0 cm | |
| 30,0 - 32,0 cm | |
| 36 - 41 | |
| ca. 1,9 kg | |
| ca. 2,2 kg | |
| ca. 14 mm | |
| ca. 18mm | |
| variiert mit Lattmaßen |
Latt distance ridge LAF in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| 100 | 100 | 100 | 90 | 90 | 90 | 90 | 90 | - | |
| 85 | 85 | 75 | 75 | 65 | 65 | 60 | 60 | - | |
Ridge-batten distance FLA in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| 90 | 90 | 80 | 80 | 70 | 65 | 60 | 60 | - | |
| 85 | 85 | 80 | 80 | 75 | 75 | 65 | 65 | - | |
