Stylist-PV

Smooth tile

Dimensions

Surface & Color

red brown

Natural red/engobed

Fine engobes

Order sample tiles

Are you looking for expert advice?
Contact person/ dealer directory

Can't find the variant you want?
Request individual tile

Overall dimension

27 x 42 cm

Cover length (CL)

35,0 cm

Cover width (CW)

23,1 cm

Required no. of units per m²

12,4

Weight per unit

4,6 kg

Recommended roof pitch

≥30° (RHE)

≥25° (VBE)

We combine roof tiles and solar – stylish, high quality, safe! With the new solar tiles, we will be completely “autarq” in the future: our flat tile WALTHER-Stylist® connects to solar modules. In this way, we take the integration of roof tiles and solar modules to a new level; two parts merge into one unit and blend discreetly into the roof surface. The solar roof tiles offer all the positive properties of the original tile. Would you like to order a sample Stylist-PV for a fee? Please contact your personal contact person directly.

Due to the same folding system, our Stylist-PV solar roof tile is also compatible with the Tradition 2021 double-trough interlocking tile. This makes it very attractive for aesthetic solar solutions in the area of ​​monument protection.

Dimensions

Dimensions
Dimensions default
Gesamtmaß 27 x 42 cm
Decklänge (DL) 35,0 cm
Deckbreite (DB) 23,1 cm
Stückbedarf pro m² 12,4
Gewicht pro Stück 4,6 kg
Maße des Solarlaminats 21 x 33 cm
Leistung je Solardachziegel edelspacegrau / rotbraun 10 Watt / 8 Watt
Leistung je m² edelspacegrau / rotbraun 124 Watt / 99 Watt

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
tegula 55 55 50 50 45 45 40 40 -
Stylist 75 75 75 75 70 70 - - -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
tegula 120 115 105 100 95 85 75 65 -
Stylist 80 80 65 60 55 50 - - -

We combine roof tiles and solar – stylish, high quality, safe! With the new solar tiles, we will be completely “autarq” in the future: our flat tile WALTHER-Stylist® connects to solar modules. In this way, we take the integration of roof tiles and solar modules to a new level; two parts merge into one unit and blend discreetly into the roof surface. The solar roof tiles offer all the positive properties of the original tile. Would you like to order a sample Stylist-PV for a fee? Please contact your personal contact person directly.

Due to the same folding system, our Stylist-PV solar roof tile is also compatible with the Tradition 2021 double-trough interlocking tile. This makes it very attractive for aesthetic solar solutions in the area of ​​monument protection.

Dimensions

Dimensions
Dimensions default
Gesamtmaß 27 x 42 cm
Decklänge (DL) 35,0 cm
Deckbreite (DB) 23,1 cm
Stückbedarf pro m² 12,4
Gewicht pro Stück 4,6 kg
Maße des Solarlaminats 21 x 33 cm
Leistung je Solardachziegel edelspacegrau / rotbraun 10 Watt / 8 Watt
Leistung je m² edelspacegrau / rotbraun 124 Watt / 99 Watt

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
tegula 55 55 50 50 45 45 40 40 -
Stylist 75 75 75 75 70 70 - - -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
tegula 120 115 105 100 95 85 75 65 -
Stylist 80 80 65 60 55 50 - - -

A selection of matching accessories

Discover our accessories

Our roof tiles on the roof

References

References

Fachwerkscheune mit Solarziegel Stylist-PV mit Autarq

References

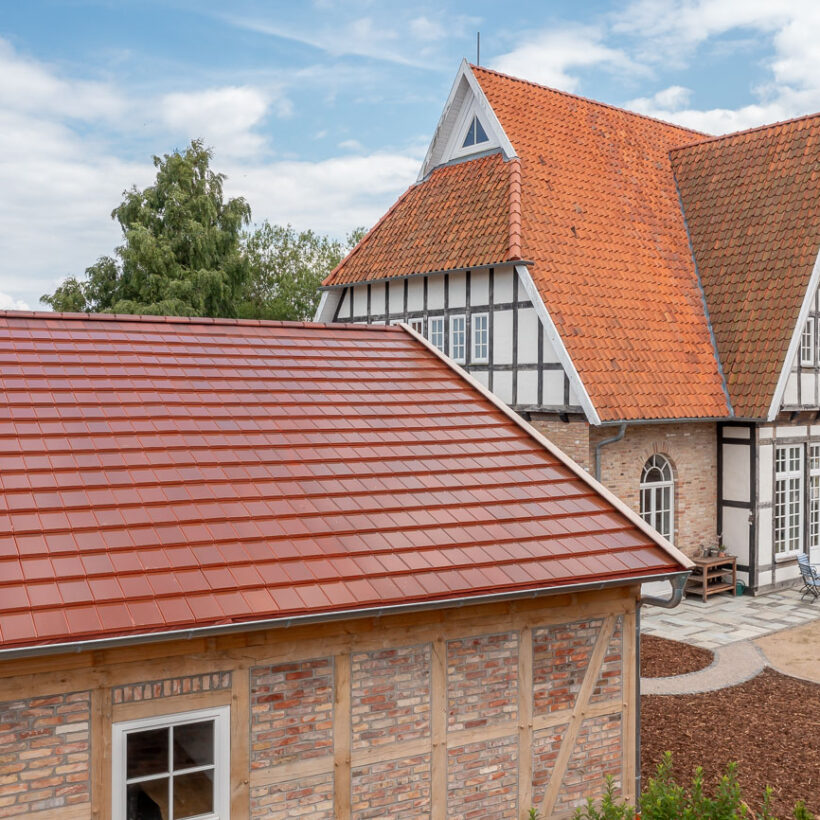

Solar tile Stylist-PV with Autarq on barn with half-timbering and clinker façade.
