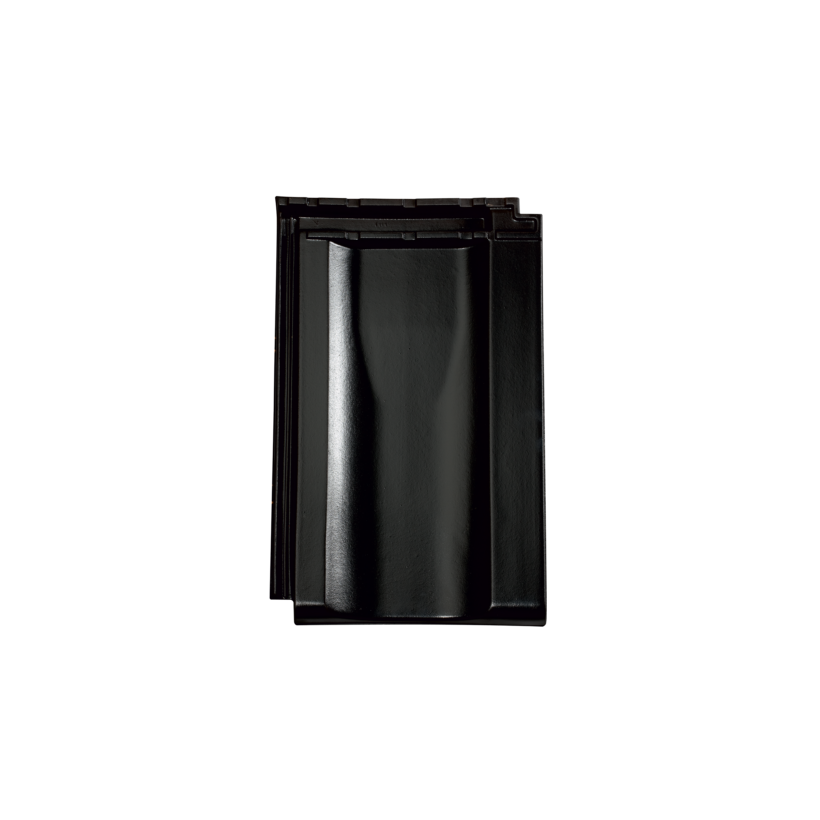

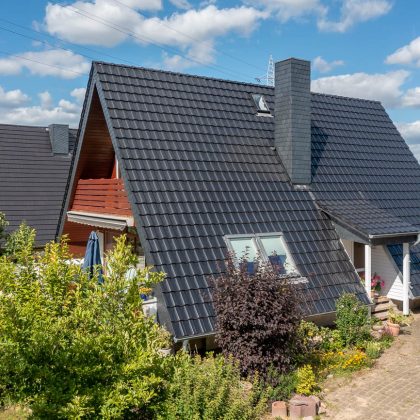

Z10

Surface & Color

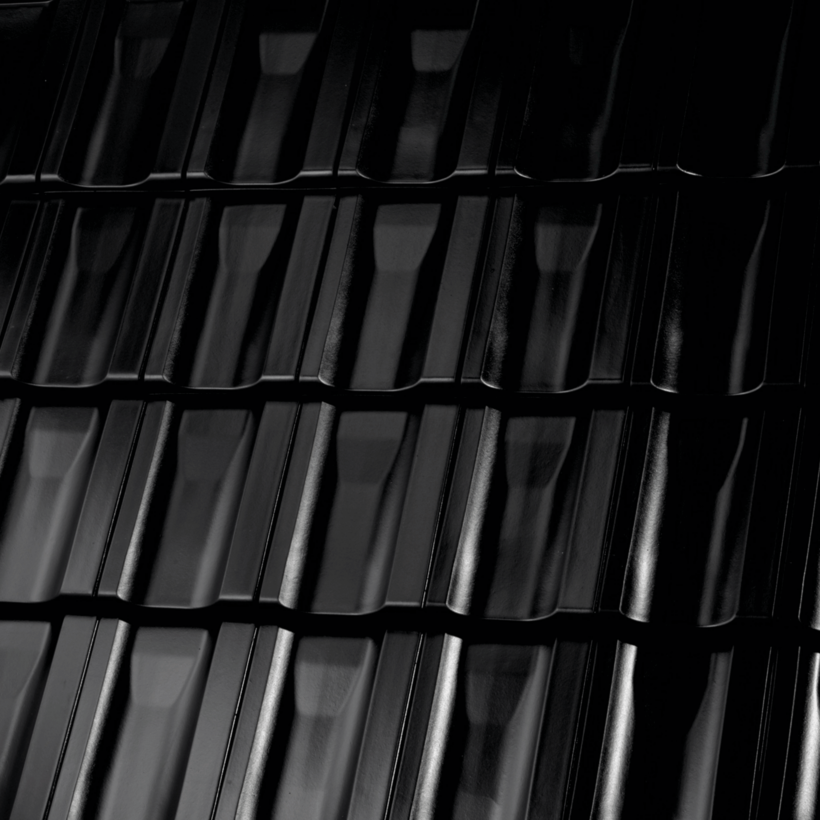

Selected surface/color: fine black

Natural red/engobed

Fine engobes

Are you looking for expert advice?
Contact

Can't find the variant you want?
Request individual tile

Overall dimension

29,0 x 45,6 cm

Cover length (CL)

32,0 - 38,0 cm

Cover width (CW)

26,5 cm

Required no. of units per m²

9,9 - 11,8

Weight per unit

ca. 4,4 kg

Recommended roof pitch

≥ 30°

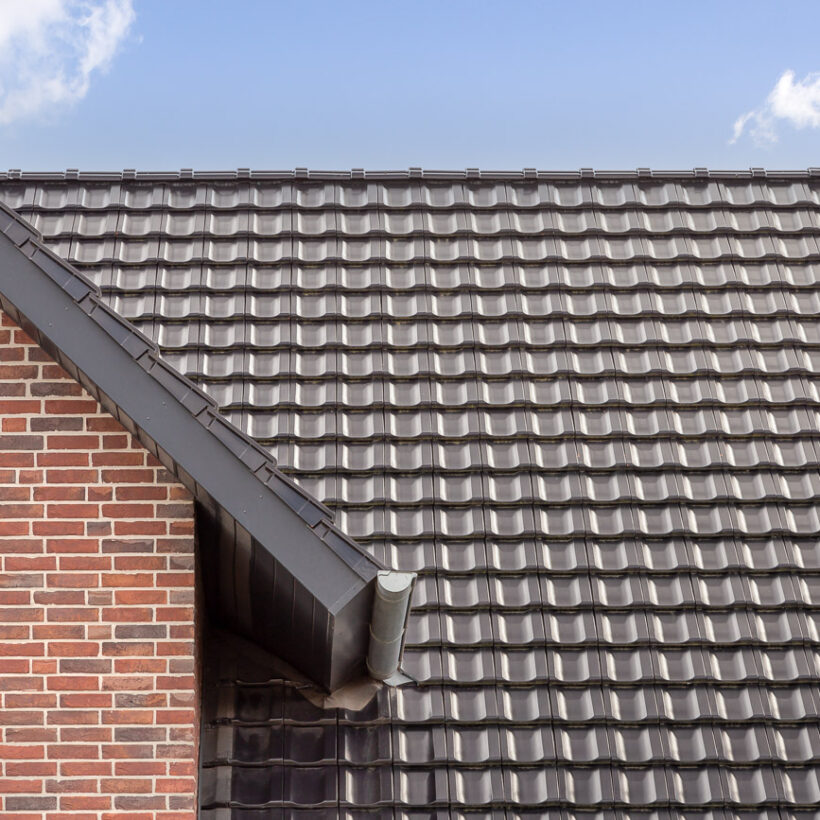

With a length of 32 to 38 centimetres and its beneficial size, you can work with the Z10 in a particularly economic manner. Only ten tiles are required for each square metre of roof. The roof can therefore be covered more quickly, which in turn saves working time. The 60 millimetre sliding range makes the flat tiles with a restrained look equally suitable for both new builds and renovations. The Z10 offers planners and processors numerous architectural options – including through a variety of traditional and contemporary colour tones.

Dimensions

Dimensions
Dimensions default
Overall dimensions 29,0 x 45,6 cm
Cover length (CL) with verge 35,5 - 38,0 cm
CL working on verge 32,0 x 35,5 cm
CL without verge 32,0 - 38,0 cm
Cover width (CW) 26,5 cm
Required no. of units per m² 9,9 - 11,8
Weight per unit ca. 4,4 kg
Double beading pcs. per rm ca. 2,6
Verge pcs. per rm ca. 2,6
Smallest packaging unit 60 St.
Pcs/pallet 240
Recommended roof pitch ≥ 30°

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 - 50 45 35 30 25 20 - -
F1v - 65 60 50 50 45 45 45 -
F6v - 65 60 55 50 45 45 45 -
F9 - 60 50 40 40 35 25 15 -
F16 - 75 65 65 55 50 50 50 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
F1 - 105 100 90 80 75 70 - -
F1v - 120 115 105 100 90 85 80 -
F6v - 115 110 105 100 90 80 75 -
F9 - 95 90 85 80 75 65 60 -
F16 - 105 100 95 85 80 70 60 -

Lath spacing ridge (LAF) in mm

Lath spacing ridge (LAF) in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
Z10 - 45 35 30 30 25 10 5 5

Ridge-batten distance FLA for ridge universal 90°

Ridge-batten distance FLA for ridge universal 90°
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
Z10 - 95 85 85 85 75 75 70 70
Skizze mit Dachschnitt von Reformziegel Z10
Example ridge
Verge
Verge
Double beading Z10
Double beading
