With a length of 32 to 38 centimetres and its beneficial size, you can work with the Z10 in a particularly economic manner. Only ten tiles are required for each square metre of roof. The roof can therefore be covered more quickly, which in turn saves working time. The 60 millimetre sliding range makes the flat tiles with a restrained look equally suitable for both new builds and renovations. The Z10 offers planners and processors numerous architectural options – including through a variety of traditional and contemporary colour tones.

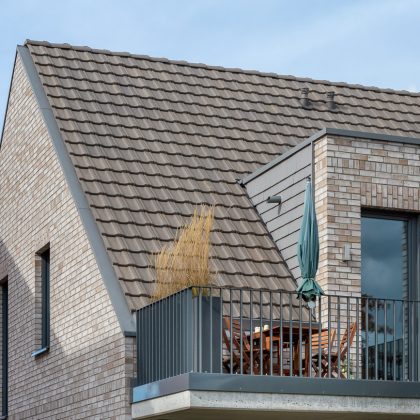

Z10
Surface & Color

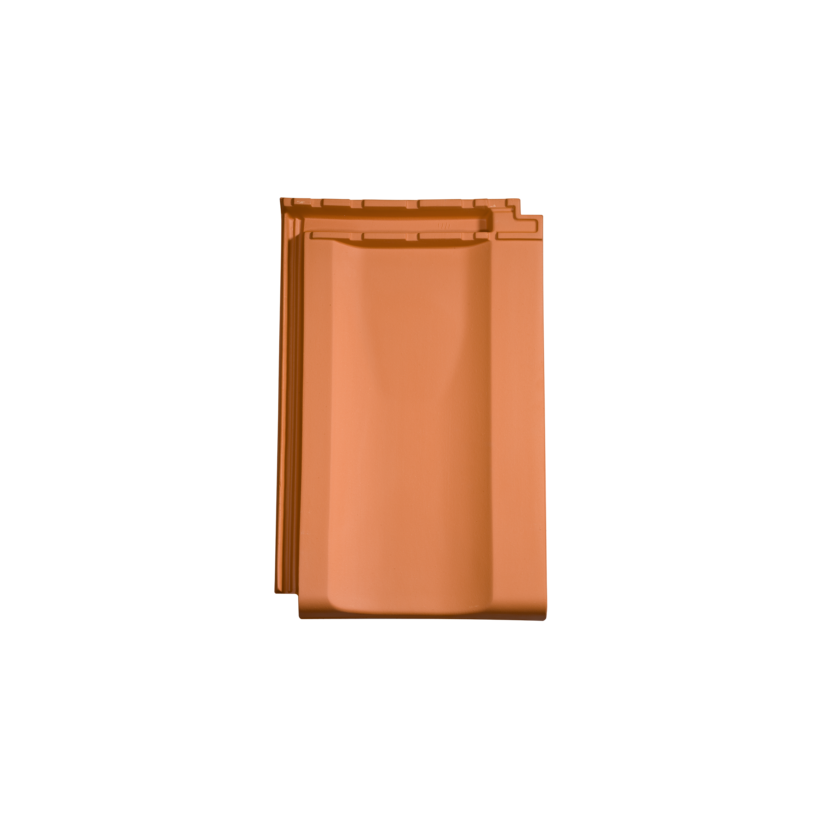

Selected surface/color: natural red
Natural red/engobed
Fine engobes
Are you looking for expert advice?
Contact
Can't find the variant you want?
Request individual tile
Overall dimension
29,0 x 45,6 cm
Cover length (CL)
32,0 - 38,0 cm
Cover width (CW)
26,5 cm
Required no. of units per m²
9,9 - 11,8
Weight per unit
ca. 4,4 kg
Recommended roof pitch
≥ 30°
Dimensions
| Dimensions | default |
|---|---|
| Overall dimensions | 29,0 x 45,6 cm |
| Cover length (CL) with verge | 35,5 - 38,0 cm |
| CL working on verge | 32,0 x 35,5 cm |
| CL without verge | 32,0 - 38,0 cm |
| Cover width (CW) | 26,5 cm |
| Required no. of units per m² | 9,9 - 11,8 |
| Weight per unit | ca. 4,4 kg |
| Double beading pcs. per rm | ca. 2,6 |
| Verge pcs. per rm | ca. 2,6 |
| Smallest packaging unit | 60 St. |
| Pcs/pallet | 240 |
| Recommended roof pitch | ≥ 30° |
Latt distance ridge LAF in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| F1 | - | 50 | 45 | 35 | 30 | 25 | 20 | - | - |
| F1v | - | 65 | 60 | 50 | 50 | 45 | 45 | 45 | - |
| F6v | - | 65 | 60 | 55 | 50 | 45 | 45 | 45 | - |
| F9 | - | 60 | 50 | 40 | 40 | 35 | 25 | 15 | - |
| F16 | - | 75 | 65 | 65 | 55 | 50 | 50 | 50 | - |
Ridge-batten distance FLA in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| F1 | - | 105 | 100 | 90 | 80 | 75 | 70 | - | - |
| F1v | - | 120 | 115 | 105 | 100 | 90 | 85 | 80 | - |
| F6v | - | 115 | 110 | 105 | 100 | 90 | 80 | 75 | - |
| F9 | - | 95 | 90 | 85 | 80 | 75 | 65 | 60 | - |
| F16 | - | 105 | 100 | 95 | 85 | 80 | 70 | 60 | - |
Lath spacing ridge (LAF) in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| Z10 | - | 45 | 35 | 30 | 30 | 25 | 10 | 5 | 5 |
Ridge-batten distance FLA for ridge universal 90°
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| Z10 | - | 95 | 85 | 85 | 85 | 75 | 75 | 70 | 70 |
With a length of 32 to 38 centimetres and its beneficial size, you can work with the Z10 in a particularly economic manner. Only ten tiles are required for each square metre of roof. The roof can therefore be covered more quickly, which in turn saves working time. The 60 millimetre sliding range makes the flat tiles with a restrained look equally suitable for both new builds and renovations. The Z10 offers planners and processors numerous architectural options – including through a variety of traditional and contemporary colour tones.
Dimensions
| Dimensions | default |
|---|---|
| Overall dimensions | 29,0 x 45,6 cm |
| Cover length (CL) with verge | 35,5 - 38,0 cm |
| CL working on verge | 32,0 x 35,5 cm |
| CL without verge | 32,0 - 38,0 cm |
| Cover width (CW) | 26,5 cm |
| Required no. of units per m² | 9,9 - 11,8 |
| Weight per unit | ca. 4,4 kg |
| Double beading pcs. per rm | ca. 2,6 |
| Verge pcs. per rm | ca. 2,6 |
| Smallest packaging unit | 60 St. |
| Pcs/pallet | 240 |
| Recommended roof pitch | ≥ 30° |
Latt distance ridge LAF in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| F1 | - | 50 | 45 | 35 | 30 | 25 | 20 | - | - |
| F1v | - | 65 | 60 | 50 | 50 | 45 | 45 | 45 | - |
| F6v | - | 65 | 60 | 55 | 50 | 45 | 45 | 45 | - |
| F9 | - | 60 | 50 | 40 | 40 | 35 | 25 | 15 | - |
| F16 | - | 75 | 65 | 65 | 55 | 50 | 50 | 50 | - |
Ridge-batten distance FLA in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| F1 | - | 105 | 100 | 90 | 80 | 75 | 70 | - | - |
| F1v | - | 120 | 115 | 105 | 100 | 90 | 85 | 80 | - |
| F6v | - | 115 | 110 | 105 | 100 | 90 | 80 | 75 | - |
| F9 | - | 95 | 90 | 85 | 80 | 75 | 65 | 60 | - |
| F16 | - | 105 | 100 | 95 | 85 | 80 | 70 | 60 | - |
Lath spacing ridge (LAF) in mm
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| Z10 | - | 45 | 35 | 30 | 30 | 25 | 10 | 5 | 5 |
Ridge-batten distance FLA for ridge universal 90°
| Ridge tile | roof pitch | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | |
| Z10 | - | 95 | 85 | 85 | 85 | 75 | 75 | 70 | 70 |
