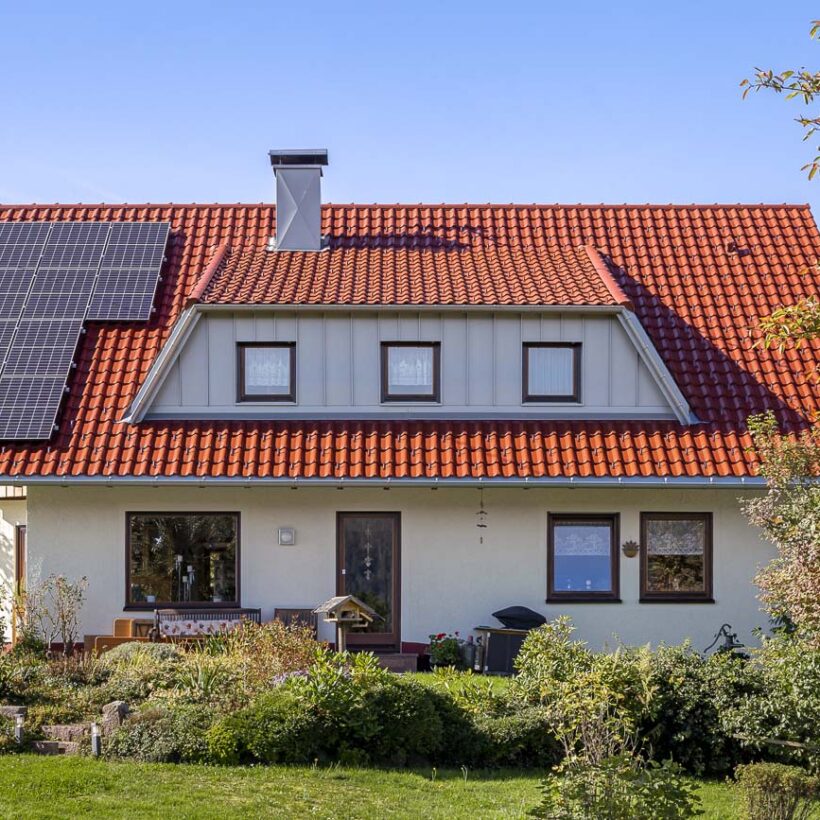

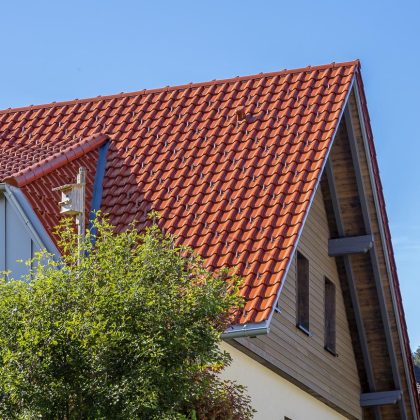

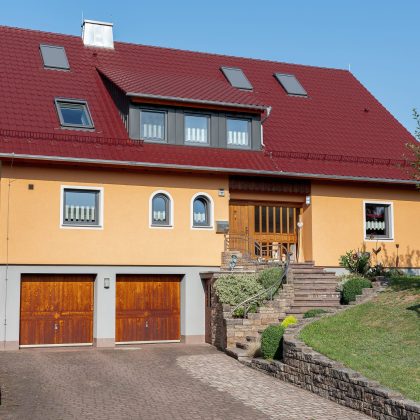

W6v

Flat roof tile

Dimensions

Natural red/engobed, fine engobed

Surface & Color

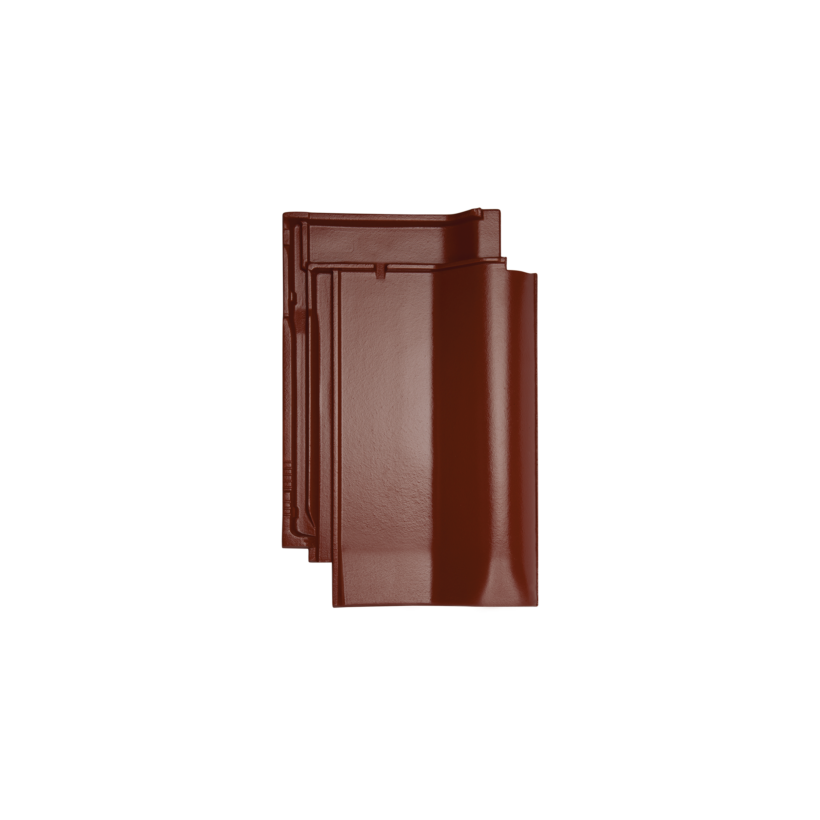

Selected surface/color: fine maroon

Natural red/engobed

Fine engobes

Order sample tiles

Are you looking for expert advice?
Contact

Can't find the variant you want?
Request individual tile

Overall dimension

27,5 x 44,0 cm

Cover length (CL)

33,3 - 36,1 cm

Cover width (CW)

21,7 cm

Required no. of units per m²

12,8 - 13,8

Weight per unit

ca. 3,8 kg

Recommended roof pitch

≥ 22°

Hagelklasse

With the W6v we offer a modern flat roof cover with quadruple coverage in the four-tile corner. You have a large sliding area of up to 29 millimetres and only need 12.7 items per square metre. The middle format tile therefore offers you a good combination of economy and a timeless, beautiful appearance.

In addition to being wind-proof via a simple side bracket, the W6v offers such tasteful surfaces as the “Brillanz” glazing or standard engobe. Our modern roof tiles produce filigree lines – test them out!

Dimensions

Dimensions
Dimensions	default
Overall dimensions	27,5 x 44,0 cm
Cover length (CL)	33,3 - 36,1 cm
Cover width (CW)	21,7 cm
Required no. of units per m²	12,8 - 13,8
Weight per unit	ca. 3,8 kg
FAL pcs per linear meter	ca. 4,6
Double beading pcs per linear meter	ca. 2,8
Packaging Unit	64 St.
Piece/pallet	256
Recommended roof pitch	≥ 22°
	5

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile	roof pitch
Ridge tile	15°	20°	25°	30°	35°	40°	45°	50°	55°
cylindrical First burr roll 30/50	100	100	90	90	85	85	80	80	-
cylindrical First burr roll 40/60	95	95	90	90	85	85	80	80	-

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile	roof pitch
Ridge tile	15°	20°	25°	30°	35°	40°	45°	50°	55°
cylindrical First burr roll 30/50	95	95	80	80	65	65	40	40	-
cylindrical First burr roll 40/60	110	100	90	80	70	65	55	45	-

Latt distance ridge LAF /* FAL in mm

Latt distance ridge LAF /* FAL in mm
Ridge tile	roof pitch
Ridge tile	15°	20°	25°	30°	35°	40°	45°	50°	55°
cylindrical 30/50	50	50	40	40	30	30	25	25	-
cylindrical 40/60	45	45	40	40	30	30	25	25	-

Ridge-batten distance FLA /* FAL in mm

Ridge-batten distance FLA /* FAL in mm
Ridge tile	roof pitch
Ridge tile	15°	20°	25°	30°	35°	40°	45°	50°	55°
cylindrical 30/50	105	105	80	80	70	70	50	50	-
cylindrical 40/60	115	105	90	85	75	70	65	60	-

Skizze mit Dachschnitt von Flachdachziegel W6v — Example ridge

Dimensions

Dimensions
Dimensions	default
Overall dimensions	27,5 x 44,0 cm
Cover length (CL)	33,3 - 36,1 cm
Cover width (CW)	21,7 cm
Required no. of units per m²	12,8 - 13,8
Weight per unit	ca. 3,8 kg
FAL pcs per linear meter	ca. 4,6
Double beading pcs per linear meter	ca. 2,8
Packaging Unit	64 St.
Piece/pallet	256
Recommended roof pitch	≥ 22°
	5
