W6v

Dimensions

Surface & Color

fineslate

Natural red/engobed

Fine engobes

Order sample tiles

Are you looking for expert advice?
Contact

Can't find the variant you want?
Request individual tile

Overall dimension

27,5 x 44,0 cm

Cover length (CL)

33,3 - 36,1 cm

Cover width (CW)

21,7 cm

Required no. of units per m²

12,8 - 13,8

Weight per unit

ca. 3,8 kg

Recommended roof pitch

≥ 22°

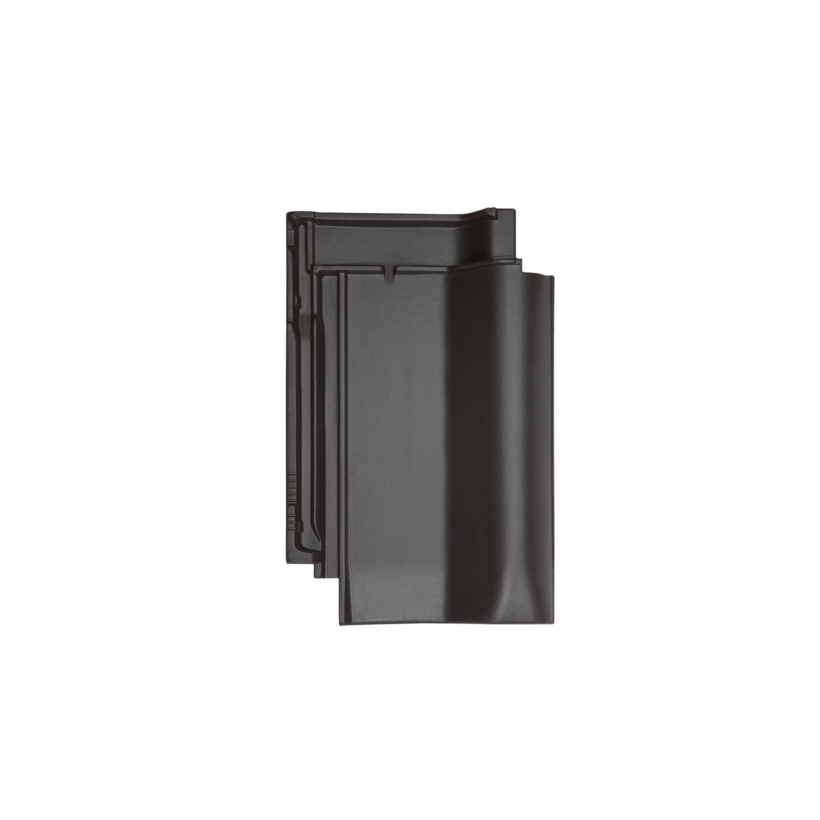

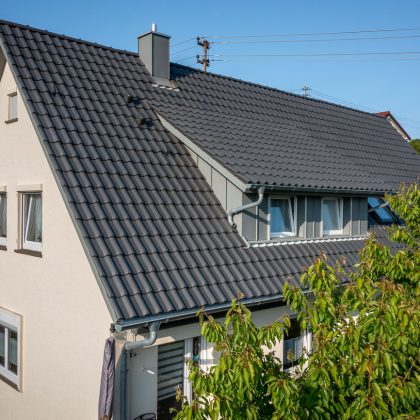

With the W6v we offer a modern flat roof cover with quadruple coverage in the four-tile corner. You have a large sliding area of up to 29 millimetres and only need 12.7 items per square metre. The middle format tile therefore offers you a good combination of economy and a timeless, beautiful appearance.

In addition to being wind-proof via a simple side bracket, the W6v offers such tasteful surfaces as the “Brillanz” glazing or standard engobe. Our modern roof tiles produce filigree lines – test them out!

Dimensions

Dimensions
Dimensions default
Overall dimensions 27,5 x 44,0 cm
Cover length (CL) 33,3 - 36,1 cm
Cover width (CW) 21,7 cm
Required no. of units per m² 12,8 - 13,8
Weight per unit ca. 3,8 kg
FAL pcs per linear meter ca. 4,6
Double beading pcs per linear meter ca. 2,8
Packaging Unit 64 St.
Piece/pallet 256
Recommended roof pitch ≥ 22°

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
cylindrical First burr roll 30/50 100 100 90 90 85 85 80 80 -
cylindrical First burr roll 40/60 95 95 90 90 85 85 80 80 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
cylindrical First burr roll 30/50 95 95 80 80 65 65 40 40 -
cylindrical First burr roll 40/60 110 100 90 80 70 65 55 45 -

Latt distance ridge LAF /* FAL in mm

Latt distance ridge LAF /* FAL in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
cylindrical 30/50 50 50 40 40 30 30 25 25 -
cylindrical 40/60 45 45 40 40 30 30 25 25 -

Ridge-batten distance FLA /* FAL in mm

Ridge-batten distance FLA /* FAL in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
cylindrical 30/50 105 105 80 80 70 70 50 50 -
cylindrical 40/60 115 105 90 85 75 70 65 60 -
Skizze mit Dachschnitt von Flachdachziegel W6v
Example ridge
Verge W6v
Verge
Double beading W6v
Double beading
