W6v

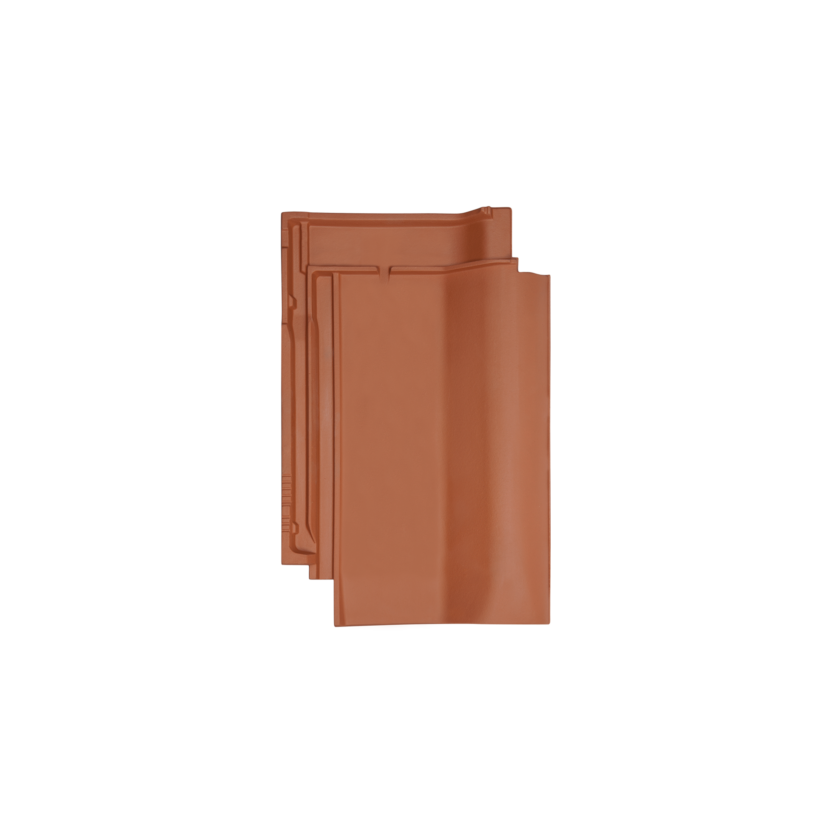

Flat roof tile

Surface & Color

Selected surface/color: natural red

Natural red/engobed

Fine engobes

Are you looking for expert advice?
Contact

Can't find the variant you want?
Request individual tile

Overall dimension

27,5 x 44,0 cm

Cover length (CL)

33,3 - 36,1 cm

Cover width (CW)

21,7 cm

Required no. of units per m²

12,8 - 13,8

Weight per unit

ca. 3,8 kg

Recommended roof pitch

≥ 22°

With the W6v we offer a modern flat roof cover with quadruple coverage in the four-tile corner. You have a large sliding area of up to 29 millimetres and only need 12.7 items per square metre. The middle format tile therefore offers you a good combination of economy and a timeless, beautiful appearance.

In addition to being wind-proof via a simple side bracket, the W6v offers such tasteful surfaces as the “Brillanz” glazing or standard engobe. Our modern roof tiles produce filigree lines – test them out!

Dimensions

Dimensions
Dimensions default
Overall dimensions 27,5 x 44,0 cm
Cover length (CL) 33,3 - 36,1 cm
Cover width (CW) 21,7 cm
Required no. of units per m² 12,8 - 13,8
Weight per unit ca. 3,8 kg
FAL pcs per linear meter ca. 4,6
Double beading pcs per linear meter ca. 2,8
Packaging Unit 64 St.
Piece/pallet 256
Recommended roof pitch ≥ 22°

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
cylindrical First burr roll 30/50 100 100 90 90 85 85 80 80 -
cylindrical First burr roll 40/60 95 95 90 90 85 85 80 80 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
cylindrical First burr roll 30/50 95 95 80 80 65 65 40 40 -
cylindrical First burr roll 40/60 110 100 90 80 70 65 55 45 -

Latt distance ridge LAF /* FAL in mm

Latt distance ridge LAF /* FAL in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
cylindrical 30/50 50 50 40 40 30 30 25 25 -
cylindrical 40/60 45 45 40 40 30 30 25 25 -

Ridge-batten distance FLA /* FAL in mm

Ridge-batten distance FLA /* FAL in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
cylindrical 30/50 105 105 80 80 70 70 50 50 -
cylindrical 40/60 115 105 90 85 75 70 65 60 -
Skizze mit Dachschnitt von Flachdachziegel W6v
Example ridge
Verge W6v
Verge
Double beading W6v
Double beading

Dachziegel-Technik App

Mit unserer App Dachziegel Technik bleiben Sie immer auf dem neuesten Stand und erhalten alle wichtigen Informationen und technische Daten rund um unsere Produkte - auch offline!

Mehr über die App erfahren

Header für das kostenlose Werkzeug App Dachziegel Technik

Rechner für Schneeschutzsysteme

Unser Rechner für Schneeschutzsysteme wurde entwickelt, um Ihnen einen Überblick über die zu erwartenden Schneelasten zu geben und dient als Orientierungshilfe für die Schneesicherung Ihres Daches.

Zum Rechner für Schneeschutzsysteme

teaser-page--large

With the W6v we offer a modern flat roof cover with quadruple coverage in the four-tile corner. You have a large sliding area of up to 29 millimetres and only need 12.7 items per square metre. The middle format tile therefore offers you a good combination of economy and a timeless, beautiful appearance.

In addition to being wind-proof via a simple side bracket, the W6v offers such tasteful surfaces as the “Brillanz” glazing or standard engobe. Our modern roof tiles produce filigree lines – test them out!

Dimensions

Dimensions
Dimensions default
Overall dimensions 27,5 x 44,0 cm
Cover length (CL) 33,3 - 36,1 cm
Cover width (CW) 21,7 cm
Required no. of units per m² 12,8 - 13,8
Weight per unit ca. 3,8 kg
FAL pcs per linear meter ca. 4,6
Double beading pcs per linear meter ca. 2,8
Packaging Unit 64 St.
Piece/pallet 256
Recommended roof pitch ≥ 22°

Latt distance ridge LAF in mm

Latt distance ridge LAF in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
cylindrical First burr roll 30/50 100 100 90 90 85 85 80 80 -
cylindrical First burr roll 40/60 95 95 90 90 85 85 80 80 -

Ridge-batten distance FLA in mm

Ridge-batten distance FLA in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
cylindrical First burr roll 30/50 95 95 80 80 65 65 40 40 -
cylindrical First burr roll 40/60 110 100 90 80 70 65 55 45 -

Latt distance ridge LAF /* FAL in mm

Latt distance ridge LAF /* FAL in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
cylindrical 30/50 50 50 40 40 30 30 25 25 -
cylindrical 40/60 45 45 40 40 30 30 25 25 -

Ridge-batten distance FLA /* FAL in mm

Ridge-batten distance FLA /* FAL in mm
Ridge tile roof pitch
15° 20° 25° 30° 35° 40° 45° 50° 55°
cylindrical 30/50 105 105 80 80 70 70 50 50 -
cylindrical 40/60 115 105 90 85 75 70 65 60 -
Skizze mit Dachschnitt von Flachdachziegel W6v
Example ridge
Verge W6v
Verge
Double beading W6v
Double beading

Dachziegel-Technik App

Mit unserer App Dachziegel Technik bleiben Sie immer auf dem neuesten Stand und erhalten alle wichtigen Informationen und technische Daten rund um unsere Produkte - auch offline!

Mehr über die App erfahren

Header für das kostenlose Werkzeug App Dachziegel Technik

Rechner für Schneeschutzsysteme

Unser Rechner für Schneeschutzsysteme wurde entwickelt, um Ihnen einen Überblick über die zu erwartenden Schneelasten zu geben und dient als Orientierungshilfe für die Schneesicherung Ihres Daches.

Zum Rechner für Schneeschutzsysteme

teaser-page--large
